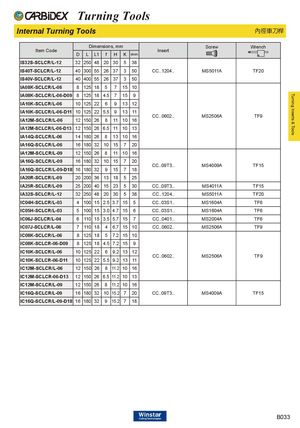

| Internal Turning It Cd | T | ool D | s ime | nsion | s, m | m | It | Screw | Wrench 內徑車刀桿 | |
| em oe | D | L | L1 | f | H | K | dmin | nser | ||
| IS32S-SCLCR/L-12 | 32 | 250 | 48 | 20 | 30 | 5 | 38 | |||
| IS40T-SCLCR/L-12 | 40 | 300 | 55 | 26 | 37 | 3 | 50 | CC..1204.. | MS5011A | TF20 |
| IS40V-SCLCR/L-12 | 40 | 400 | 55 | 26 | 37 | 3 | 50 | |||
| IA08K-SCLCR/L-06 | 8 | 125 | 18 | 5 | 7 | 15 | 10 | |||
| IA08K-SCLCR/L-06-D09 | 8 | 125 | 18 | 4.5 | 7 | 15 | 9 | |||
| IA10K-SCLCR/L-06 | 10 | 125 | 22 | 6 | 9 | 13 | 12 | |||
| IA10K-SCLCR/L-06-D11 | 10 | 125 | 22 | 5.5 | 9 | 13 | 11 | CC0602 | MS2506A | TF9 |
| IA12M-SCLCR/L-06 | 12 | 150 | 26 | 8 | 11 | 10 | 16 | .... | ||
| IA12M-SCLCR/L-06-D13 | 12 | 150 | 26 | 6.5 | 11 | 10 | 13 | |||
| IA14Q-SCLCR/L-06 | 14 | 180 | 26 | 8 | 13 | 10 | 16 | |||
| IA16Q-SCLCR/L-06 | 16 | 180 | 32 | 10 | 15 | 7 | 20 | |||
| IA12M-SCLCR/L-09 | 12 | 150 | 26 | 8 | 11 | 10 | 16 | |||
| IA16Q-SCLCR/L-09 | 16 | 180 | 32 | 10 | 15 | 7 | 20 | CC09T3 | MS4009A | TF15 |
| IA16Q-SCLCR/L-09-D18 | 16 | 180 | 32 | 9 | 15 | 7 | 18 | .... | ||
| IA20R-SCLCR/L-09 | 20 | 200 | 36 | 13 | 18 | 5 | 25 | |||
| IA25R-SCLCR/L-09 | 25 | 200 | 40 | 15 | 23 | 5 | 30 | CC..09T3.. | MS4011A | TF15 |
| IA32S-SCLCR/L-12 | 32 | 250 | 48 | 20 | 30 | 5 | 38 | CC..1204.. | MS5011A | TF20 |
| IC04H-SCLCR/L-03 | 4 | 100 | 15 | 2.5 | 3.7 | 15 | 5 | CC..03S1.. | MS1604A | TF6 |
| IC05H-SCLCR/L-03 | 5 | 100 | 15 | 3.0 | 4.7 | 15 | 6 | CC..03S1.. | MS1604A | TF6 |
| IC06J-SCLCR/L-04 | 6 | 110 | 15 | 3.5 | 5.7 | 15 | 7 | CC..0401.. | MS2004A | TF6 |
| IC07J-SCLCR/L-06 | 7 | 110 | 18 | 4 | 6.7 | 15 | 10 | CC..0602.. | MS2506A | TF9 |
| IC08K-SCLCR/L-06 | 8 | 125 | 18 | 5 | 7.2 | 15 | 10 | |||
| IC08K-SCLCR-06-D09 | 8 | 125 | 18 | 4.5 | 7.2 | 15 | 9 | |||
| IC10K-SCLCR/L-06 | 10 | 125 | 22 | 6 | 9.2 | 13 | 12 | CC0602 | MS2506A | TF9 |
| IC10K-SCLCR-06-D11 | 10 | 125 | 22 | 5.5 | 9.2 | 13 | 11 | .... | ||
| IC12M-SCLCR/L-06 | 12 | 150 | 26 | 8 | 11.2 | 10 | 16 | |||
| IC12M-SCLCR-06-D13 | 12 | 150 | 26 | 6.5 | 11.2 | 10 | 13 | |||
| IC12M-SCLCR/L-09 | 12 | 150 | 26 | 8 | 11.2 | 10 | 16 | |||
| IC16Q-SCLCR/L-09 | 16 | 180 | 32 | 10 | 15.2 | 7 | 20 | CC..09T3.. | MS4009A | TF15 |
| IC16Q-SCLCR/L-09-D18 | 16 | 180 | 32 | 9 | 15.2 | 7 | 18 |
