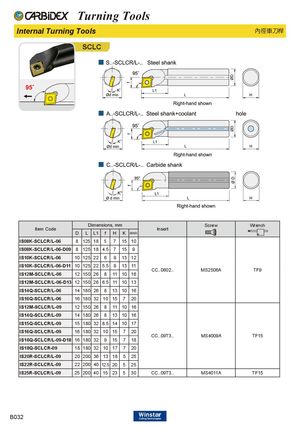

SCLC
| Item Code | D | ime | nsion | s, m | m | Insert | Screw | Wrench | ||
| D | L | L1 | f | H | K | dmin | ||||
| IS08K-SCLCR/L-06 | 8 | 125 | 18 | 5 | 7 | 15 | 10 | |||
| IS08K-SCLCR/L-06-D09 | 8 | 125 | 18 | 4.5 | 7 | 15 | 9 | |||
| IS10K-SCLCR/L-06 | 10 | 125 | 22 | 6 | 9 | 13 | 12 | |||
| IS10K-SCLCR/L-06-D11 | 10 | 125 | 22 | 5.5 | 9 | 13 | 11 | |||
| IS12M-SCLCR/L-06 | 12 | 150 | 26 | 8 | 11 | 10 | 16 | CC..0602.. | MS2506A | TF9 |
| IS12M-SCLCR/L-06-D13 | 12 | 150 | 26 | 6.5 | 11 | 10 | 13 | |||
| IS14Q-SCLCR/L-06 | 14 | 180 | 26 | 8 | 13 | 10 | 16 | |||
| IS16Q-SCLCR/L-06 | 16 | 180 | 32 | 10 | 15 | 7 | 20 | |||
| IS12M-SCLCR/L-09 | 12 | 150 | 26 | 8 | 11 | 10 | 16 | |||
| IS14Q-SCLCR/L-09 | 14 | 180 | 26 | 8 | 13 | 10 | 16 | |||
| IS15Q-SCLCR/L-09 | 15 | 180 | 32 | 8.5 | 14 | 10 | 17 | |||
| IS16Q-SCLCR/L-09 | 16 | 180 | 32 | 10 | 15 | 7 | 20 | CCT | MS4A | TF1 |
| IS16Q-SCLCR/L-09-D18 | 16 | 180 | 32 | 9 | 15 | 7 | 18 | ..093.. | 009 | 5 |
| IS18Q-SCLCR-09 | 18 | 180 | 32 | 10 | 17 | 7 | 20 | |||
| IS20R-SCLCR/L-09 | 20 | 200 | 36 | 13 | 18 | 5 | 25 | |||
| IS22R-SCLCR/L-09 | 22 | 200 | 40 | 12.5 | 20 | 5 | 25 | |||
| IS25R-SCLCR/L-09 | 25 | 200 | 40 | 15 | 23 | 5 | 30 | CC..09T3.. | MS4011A | TF15 |
