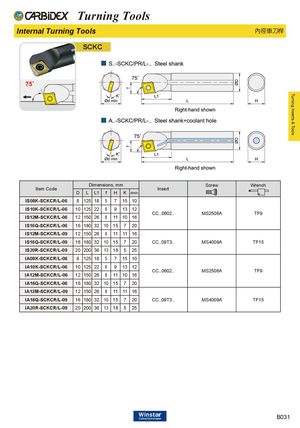

SCKC
| Item Code | Di | me | nsion | s, m | m | Insert | Screw | Wrench | ||
| D | L | L1 | f | H | K | dmin | ||||
| IS08K-SCKCR/L-06 | 8 | 125 | 18 | 5 | 7 | 15 | 10 | |||
| IS10K-SCKCR/L-06 | 10 | 125 | 22 | 6 | 9 | 13 | 12 | |||
| IS12M-SCKCR/L-06 | 12 | 150 | 26 | 8 | 11 | 10 | 16 | CC..0602.. | MS2506A | TF9 |
| IS16Q-SCKCR/L-06 | 16 | 180 | 32 | 10 | 15 | 7 | 20 | |||
| IS12M-SCKCR/L-09 | 12 | 150 | 26 | 8 | 11 | 11 | 16 | |||
| IS16Q-SCKCR/L-09 | 16 | 180 | 32 | 10 | 15 | 7 | 20 | CC..09T3.. | MS4009A | TF15 |
| IS20R-SCKCR/L-09 | 20 | 200 | 36 | 13 | 18 | 5 | 25 | |||
| IA08K-SCKCR/L-06 | 8 | 125 | 18 | 5 | 7 | 15 | 10 | |||
| IA10K-SCKCR/L-06 | 10 | 125 | 22 | 6 | 9 | 13 | 12 | |||
| IA12M-SCKCR/L-06 | 12 | 150 | 26 | 8 | 11 | 10 | 16 | CC..0602.. | MS2506A | TF9 |
| IA16Q-SCKCR/L-06 | 16 | 180 | 32 | 10 | 15 | 7 | 20 | |||
| IA12M-SCKCR/L-09 | 12 | 150 | 26 | 8 | 11 | 11 | 16 | |||
| IA16Q-SCKCR/L-09 | 16 | 180 | 32 | 10 | 15 | 7 | 20 | CC..09T3.. | MS4009A | TF15 |
| IA20R-SCKCR/L-09 | 20 | 200 | 36 | 13 | 18 | 5 | 25 |
