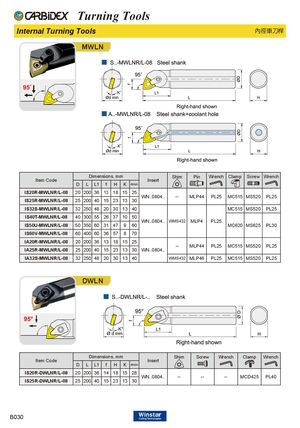

MWLN
| Item Code | Di | men | sion | s, m | m | Insert | Shim | Pin | Wrench | Clamp | Screw | Wrench | ||
| D | L | L1 | f | H | K | dmin | ||||||||
| IS20R-MWLNR/L-08 | 20 | 200 | 36 | 13 | 18 | 15 | 25 | WN0804 | MLP44 | PL25 | MC515 | MS520 | PL25 | |
| IS25R-MWLNR/L-08 | 25 | 200 | 40 | 15 | 23 | 13 | 30 | .... | -- | |||||
| IS32S-MWLNR/L-08 | 32 | 250 | 48 | 20 | 30 | 13 | 40 | MC515 | MS520 | PL25 | ||||
| IS40T-MWLNR/L-08 | 40 | 300 | 55 | 26 | 37 | 10 | 50 | WN4 | WMS42 | MLP4 | PL2 | |||
| IS50U-MWLNR/L-08 | 50 | 350 | 60 | 31 | 47 | 9 | 60 | ..080.. | 3 | 5 | MC620 | MS625 | PL30 | |
| IS60V-MWLNR/L-08 | 60 | 400 | 60 | 36 | 57 | 8 | 70 | |||||||
| IA20R-MWLNR/L-08 | 20 | 200 | 36 | 13 | 18 | 15 | 25 | |||||||
| IA25R-MWLNR/L-08 | 25 | 200 | 40 | 15 | 23 | 13 | 30 | WN..0804.. | -- | MLP44 | PL25 | MC515 | MS520 | PL25 |
| IA32S-MWLNR/L-08 | 32 | 250 | 48 | 20 | 30 | 13 | 40 | WMS432 | MLP46 | PL25 | MC515 | MS520 | PL25 |
DWLN
| Item Code | D | D L | imen L1 | sion f | s, m H | m K | dmin | Insert | Shim | Screw | Wrench | Clamp | Wrench |
| IS20R-DWLNR/L-08 IS25R-DWLNR/L-08 | 20 25 | 200 200 | 36 40 | 14 15 | 18 23 | 15 13 | 28 30 | WN..0804.. | -- | -- | -- | MCD425 | PL40 |
