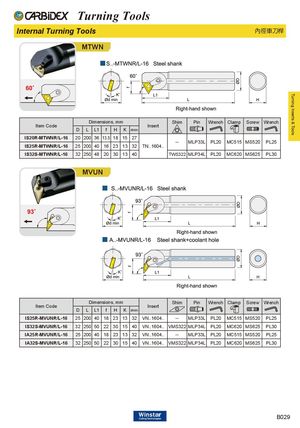

MTWN
| Item Code | D | D L | imen L1 | sion f | s, m H | m K | dmin | Insert | Shim | Pin | Wrench | Clamp | Screw | Wrench |
| IS20R-MTWNR/L-16 IS25R-MTWNR/L-16 | 20 25 | 200 200 | 36 40 | 13.5 16 | 18 23 | 15 13 | 27 32 | TN..1604.. | -- | MLP33L | PL20 | MC515 | MS520 | PL25 |
| IS32S-MTWNR/L-16 | 32 | 250 | 48 | 20 | 30 | 13 | 40 | TWS322 | MLP34L | PL20 | MC620 | MS625 | PL30 |
MVUN
| Item Code | D | D L | imen L1 | sion f | s, m H | m K | dmin | Insert | Shim | Pin | Wrench | Clamp | Screw | Wrench |
| IS25R-MVUNR/L-16 | 25 | 200 | 40 | 18 | 23 | 13 | 32 | VN..1604.. | -- | MLP33L | PL20 | MC515 | MS520 | PL25 |
| IS32S-MVUNR/L-16 | 32 | 250 | 50 | 22 | 30 | 15 | 40 | VN..1604.. | VMS322 | MLP34L | PL20 | MC620 | MS625 | PL30 |
| IA25R-MVUNR/L-16 | 25 | 200 | 40 | 18 | 23 | 13 | 32 | VN..1604.. | -- | MLP33L | PL20 | MC515 | MS520 | PL25 |
| IA32S-MVUNR/L-16 | 32 | 250 | 50 | 22 | 30 | 15 | 40 | VN..1604.. | VMS322 | MLP34L | PL20 | MC620 | MS625 | PL30 |
