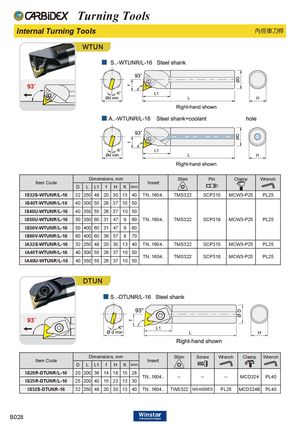

WTUN
| Item Code | Di | men | sion | s, m | m | Insert | Shim | Pin | Clamp | Wrench | ||
| D | L | L1 | f | H | K | dmin | ||||||
| IS32S-WTUNR/L-16 | 32 | 250 | 48 | 20 | 30 | 13 | 40 | TN..1604.. | TMS322 | SCP315 | MCW3-P25 | PL25 |
| IS40T-WTUNR/L-16 | 40 | 300 | 55 | 26 | 37 | 10 | 50 | |||||
| IS40U-WTUNR/L-16 | 40 | 350 | 55 | 26 | 37 | 10 | 50 | |||||
| IS50U-WTUNR/L-16 | 50 | 350 | 60 | 31 | 47 | 9 | 60 | TN..1604.. | TMS322 | SCP318 | MCW3-P25 | PL25 |
| IS50V-WTUNR/L-16 | 50 | 400 | 60 | 31 | 47 | 9 | 60 | |||||
| IS60V-WTUNR/L-16 | 60 | 400 | 60 | 36 | 57 | 8 | 70 | |||||
| IA32S-WTUNR/L-16 | 32 | 250 | 48 | 20 | 30 | 13 | 40 | TN..1604.. | TMS322 | SCP315 | MCW3-P25 | PL25 |
| IA40T-WTUNR/L-16 | 40 | 300 | 55 | 26 | 37 | 10 | 50 | |||||
| IA40U-WTUNR/L-16 | 40 | 350 | 55 | 26 | 37 | 10 | 50 | TN..1604.. | TMS322 | SCP318 | MCW3-P25 | PL25 |
DTUN
| Item Code | D | D L | imen L1 | sion f | s, m H | m K | dmin | Insert | Shim | Screw | Wrench | Clamp | Wrench |
| IS20R-DTUNR/L-16 IS25R-DTUNR/L-16 | 20 25 | 200 200 | 36 40 | 14 15 | 18 23 | 15 13 | 28 30 | TN..1604.. | -- | -- | -- | MCD324 | PL40 |
| IS32S-DTUNR-16 | 32 | 250 | 48 | 20 | 30 | 13 | 40 | TN..1604.. | TWS322 | MS4008ES | PL25 | MCD324B | PL40 |
