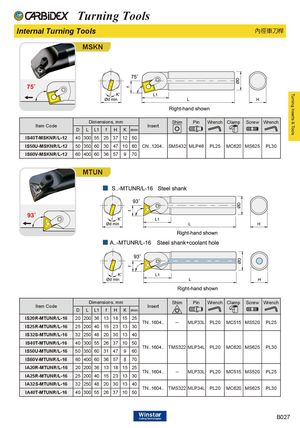

MSKN
| Item Code | D | D L | imen L1 | sion f | s, m H | m K | dmin | Insert | Shim | Pin | Wrench | Clamp | Screw | Wrench |
| IS40T-MSKNR/L-12 | 40 | 300 | 55 | 25 | 37 | 12 | 50 | |||||||
| IS50U-MSKNR/L-12 | 50 | 350 | 60 | 30 | 47 | 10 | 60 | CN..1204.. | SMS432 | MLP46 | PL25 | MC620 | MS625 | PL30 |
| IS60V-MSKNR/L-12 | 60 | 400 | 60 | 36 | 57 | 9 | 70 |
MTUN
| Item Code | D | imen | sion | s, m | m | Insert | Shim | Pin | Wrench | Clamp | Screw | Wrench | ||
| D | L | L1 | f | H | K | dmin | ||||||||
| IS20R-MTUNR/L-16 | 20 | 200 | 36 | 13 | 18 | 15 | 25 | |||||||
| IS25R-MTUNR/L-16 | 25 | 200 | 40 | 15 | 23 | 13 | 30 | TN..1604.. | -- | MLP33L | PL20 | MC515 | MS520 | PL25 |
| IS32S-MTUNR/L-16 | 32 | 250 | 48 | 20 | 30 | 13 | 40 | |||||||
| IS40T-MTUNR/L-16 | 40 | 300 | 55 | 26 | 37 | 10 | 50 | |||||||
| IS50U-MTUNR/L-16 | 50 | 350 | 60 | 31 | 47 | 9 | 60 | TN..1604.. | TMS32 | MLP34L | PL20 | MC620 | MS625 | PL30 |
| IS60V-MTUNR/L-16 | 60 | 400 | 60 | 36 | 57 | 8 | 70 | |||||||
| IA20R-MTUNR/L-16 | 20 | 200 | 36 | 13 | 18 | 15 | 25 | |||||||
| IA25R-MTUNR/L-16 | 25 | 200 | 40 | 15 | 23 | 13 | 30 | TN..1604.. | -- | MLP33L | PL20 | MC515 | MS520 | PL25 |
| IA32S-MTUNR/L-16 | 32 | 250 | 48 | 20 | 30 | 13 | 40 | |||||||
| IA40T-MTUNR/L-16 | 40 | 300 | 55 | 26 | 37 | 10 | 50 | TN..1604.. | TMS32 | MLP34L | PL20 | MC620 | MS625 | PL30 |
