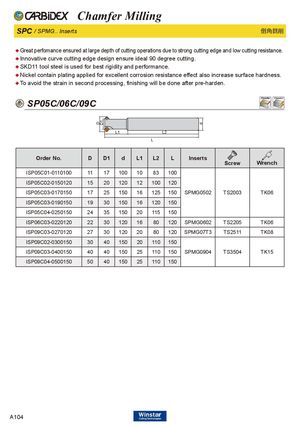

Chamfer Milling

SPC / SPMG.. Inserts 倒角銑削

  • Great perfomance ensured at large depth of cutting operations due to strong cutting edge and low cutting resistance.

♦Innovative curve cutting edge design ensure ideal 90 degree cutting. ♦SKD11 tool steel is used for best rigidity and performance.

  • Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness.

♦To avoid the strain in second processing, finishing will be done after pre-harden.

SP05C/06C/09CChamfer
DD1L1L L2d
Order No.DD1dL1L2LInsertsScrewWrench
ISP05C01-011010011171001083100
ISP05C02-0150120152012012100120
ISP05C03-0170150172515016125150SPMG0502TS2003TK06
ISP05C03-0190150193015016120150
ISP05C04-0250150243515020115150
ISP06C03-022012022301201680120SPMG0602TS2205TK06
ISP09C03-027012027301202080120SPMG07T3TS2511TK08
ISP09C02-0300150304015020110150
ISP09C03-0400150404015025110150SPMG0904TS3504TK15
ISP09C04-0500150504015025110150
