SPD / SPMG.. Inserts 三面刃銑削

SP05D/06D/07D/09D/11D Slotting T-Slotting

				D d1		L1 SB L	d D1
Order No.	D	SB	L	L1	D1	d1	d	T	Inserts	Screw	Wrench
ISP05D06S0800220	80	6	40	22	42	32	22	2 x 4	SPMG0502	TS2203	TK06
ISP05D07S0800220	80	7	40	22	42	32	22	2 x 4
ISP06D08S0800220	80	8	40	22	42	32	22	2 x 4
ISP06D09S0800220	80	9	40	22	42	32	22	2 x 4	SPMG0602	TS2205	TK06
ISP06D10S0800220	80	10	40	22	42	32	22	2 x 4
ISP07D11S0800220	80	11	40	22	42	32	22	2 x 4
ISP07D12S0800220	80	12	40	22	42	32	22	2 x 4	SPMG0703	TS2511	TK08
ISP05D06S1000270	100	6	40	22	50	32	27	2 x 5
ISP05D07S1000270	100	7	40	22	50	32	27	2 x 5	SPMG0502	TS2203	TK06
ISP06D09S1000270	100	9	40	22	50	32	27	2 x 5	SPMG0602	TS2205	TK06
ISP07D10S1000270	100	10	40	22	50	32	27	2 x 5
ISP07D11S1000270	100	11	40	22	50	32	27	2 x 5	SPMG0703	TS2511	TK08
ISP07D12S1000270	100	12	40	22	50	32	27	2 x 5
ISP09D14S1000270	100	14	40	22	50	32	27	2 x 5
ISP09D16S1000270	100	16	40	22	50	32	27	2 x 5	SPMG0904	TS3504	TK15
ISP05D06S1250320	125	6	45	25	70	46	32	2 x 6
ISP05D07S1250320	125	7	45	25	70	46	32	2 x 6	SPMG0502	TS2203	TK06
ISP06D08S1250320	125	8	45	25	70	46	32	2 x 6
ISP06D10S1250320	125	10	45	25	70	46	32	2 x 6	SPMG0602	TS2205	TK06
ISP07D11S1250320	125	11	45	25	70	46	32	2 x 6
ISP07D12S1250320	125	12	45	25	70	46	32	2 x 6	SPMG0703	TS2511	TK08
ISP09D14S1250320	125	14	45	25	70	46	32	2 x 6
ISP09D16S1250320	125	16	45	25	70	46	32	2 x 6	SPMG0904	TS3504	TK15
ISP11D18S1250320	125	18	45	25	70	46	32	2 x 5	SPMG1104	TS4006	TK15
ISP11D20S1250320	125	20	45	25	70	46	32	2 x 5
ISP07D11S1600400	160	11	50	28	80	52	40	2 x 8
ISP07D12S1600400	160	12	50	28	80	52	40	2 x 8	SPMG0703	TS2511	TK08
ISP09D14S1600400	160	14	50	28	80	52	40	2 x 8
ISP09D16S1600400	160	16	50	28	80	52	40	2 x 8	SPMG0904	TS3504	TK15
ISP11D18S1600400	160	18	50	28	80	52	40	2 x 6
ISP11D20S1600400	160	20	50	28	80	52	40	2 x 6	SPMG1104	TS4006	TK15
ISP09D14S2000400	200	14	50	28	90	52	40	2 x 9
ISP09D16S2000400	200	16	50	28	90	52	40	2 x 9	SPMG0904	TS3504	TK15
ISP11D18S2000400 ISP11D20S2000400	200 200	18 20	50 50	28 28	90 90	52 52	40 40	2 x 9 2 x 7	SPMG1104	TS4006	TK15

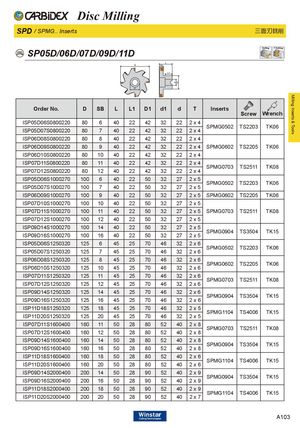

Каталог Carbidex сменные пластины 2020 - страница 105
