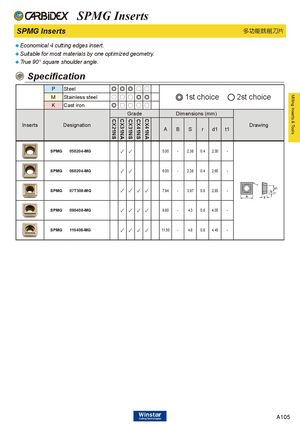

SPMG Inserts
SPMG Inserts 多功能銑削刀片
♦Economical 4 cutting edges insert. ♦Suitable for most materials by one optimized geometry. ♦True 90° square shoulder angle.
Specification
| P | Steel | ◎ | ◎ | ◎ | ○ | ○ | |||||||||
| M | Stainless steel | ○ | ○ | ○ | ◎ | ◎ | 1st | cho | ice | 2st ch | oice | ||||
| K | Cast iron | ◎ | ○ | ○ | ○ | ○ | |||||||||
| Gra | de | Dim | ensi | ons( | mm) | ||||||||||
| Inserts | Designation | CX21NS | CX31NA | CX31NS | CX41NS | CX41NA | A | B | S | r | d1 | t1 | Dr | awing | |
| SPMG | 050204-MG | ✓ | ✓ | 5.00 | - | 2.38 | 0.4 | 2.30 | - | ||||||
| SPMG | 060204-MG | ✓ | ✓ | 6.00 | - | 2.38 | 0.4 | 2.65 | - | ||||||
| SPMG | 07T308-MG | ✓ | ✓ | ✓ | ✓ | 7.94 | - | 3.97 | 0.8 | 2.85 | - | 11° | |||
| SPMG | 090408-MG | ✓ | ✓ | ✓ | ✓ | 9.80 | - | 4.3 | 0.8 | 4.05 | - | ||||
| SPMG | 110408-MG | ✓ | ✓ | ✓ | ✓ | 11.50 | - | 4.8 | 0.8 | 4.45 | - |
