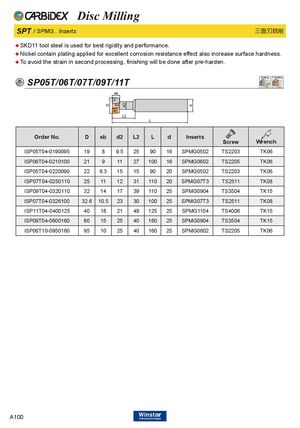

SPT / SPMG.. Inserts 三面刃銑削

  • SKD11 tool steel is used for best rigidity and performance.

♦Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness.

  • To avoid the strain in second processing, finishing will be done after pre-harden.

SP05T/06T/07T/09T/11T Slotting T-Slotting

DL2 d2 sbLd
Order No.Dsbd2L2LdInsertsScrewWrench
ISP05T04-01900951989.5259016SPMG0502TS2203TK06
ISP06T04-0210100219112710016SPMG0602TS2205TK06
ISP05T04-0220090226.315159020SPMG0502TS2203TK06
ISP07T04-02501102511123111020SPMG07T3TS2511TK08
ISP09T04-03201103214173911025SPMG0904TS3504TK15
ISP07T04-032610032.610.5233010025SPMG07T3TS2511TK08
ISP11T04-04001254018214912525SPMG1104TS4006TK15
ISP09T04-06001606015254016025SPMG0904TS3504TK15
ISP06T10-09501609510254016025SPMG0602TS2205TK06
