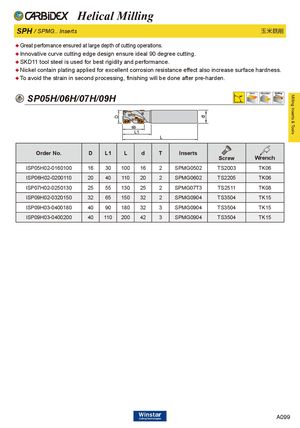

Helical Milling

SPH / SPMG.. Inserts 玉米銑削

  • Great perfomance ensured at large depth of cutting operations.

♦Innovative curve cutting edge design ensure ideal 90 degree cutting. ♦SKD11 tool steel is used for best rigidity and performance.

  • Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness.

♦To avoid the strain in second processing, finishing will be done after pre-harden.

SP05H/06H/07H/09H

D sb L1L
Order No.DL1LdTInsertsScrewWrench
ISP05H02-01601001630100162SPMG0502TS2003TK06
ISP06H02-02001102040110202SPMG0602TS2205TK06
ISP07H02-02501302555130252SPMG07T3TS2511TK08
ISP09H02-03201503265150322SPMG0904TS3504TK15
ISP09H03-04001804090180323SPMG0904TS3504TK15
ISP09H03-040020040110200423SPMG0904TS3504TK15
