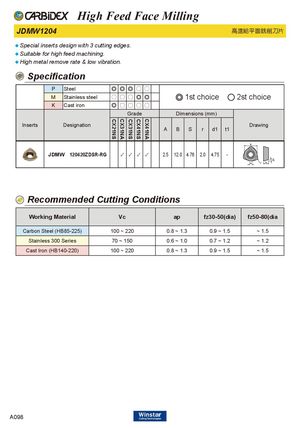

JDMW1204 高進給平面銑削刀片
- Special inserts design with 3 cutting edges.
- Suitable for high feed machining.
- High metal remove rate & low vibration. Specification
| P | Steel | ◎ ◎ ◎ | | | ○ ○ | | |
| M | Stainless steel | | | | | | 1st choice 2st choice |
| K | Cast iron | ◎ | ○ ○ ○ ○ | | | | |
| | | | Grade | | Dimensions (mm) | |
Inserts Designation Drawing
| | A | B | S | r | d1 | t1 |
| JDMW 120420ZDSR-RG | ✓ ✓ ✓ ✓ | 2.5 12.0 4.76 2.0 4.75 | | | | | - |
Recommended Cutting Conditions
| Working Material | Vc | ap | fz30-50(dia) | fz50-80(dia |
| Carbon Steel (HB85-225) | 100 ~ 220 | 0.8 ~ 1.3 | 0.9 ~ 1.5 | ~ 1.5 |
| Stainless 300 Series | 70 ~ 150 | 0.6 ~ 1.0 | 0.7 ~ 1.2 | ~ 1.2 |
| Cast Iron (HB140-220) | 100 ~ 220 | 0.8 ~ 1.3 | 0.9 ~ 1.5 | ~ 1.5 |
