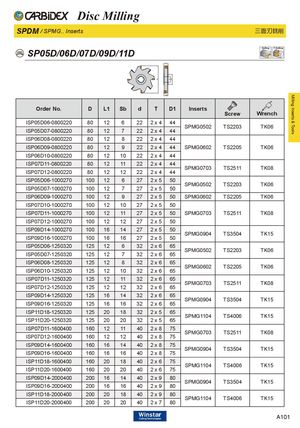

SPDM / SPMG.. Inserts 三面刃銑削
SP05D/06D/07D/09D/11D Slotting T-Slotting
L1
SB
| Order No. | D | L1 | Sb | d | T | D1 | Inserts | Screw | Wrench |
| ISP05D06-0800220 | 80 | 12 | 6 | 22 | 2 x 4 | 44 | SPMG2 | TS22 | TK |
| ISP05D07-0800220 | 80 | 12 | 7 | 22 | 2 x 4 | 44 | 050 | 03 | 06 |
| ISP06D08-0800220 | 80 | 12 | 8 | 22 | 2 x 4 | 44 | |||
| ISP06D09-0800220 | 80 | 12 | 9 | 22 | 2 x 4 | 44 | SPMG0602 | TS2205 | TK06 |
| ISP06D10-0800220 | 80 | 12 | 10 | 22 | 2 x 4 | 44 | |||
| ISP07D11-0800220 | 80 | 12 | 11 | 22 | 2 x 4 | 44 | SPMG0703 | TS2511 | TK08 |
| ISP07D12-0800220 | 80 | 12 | 12 | 22 | 2 x 4 | 44 | |||
| ISP05D06-1000270 | 100 | 12 | 6 | 27 | 2 x 5 | 50 | SPMG0502 | TS2203 | TK06 |
| ISP05D07-1000270 | 100 | 12 | 7 | 27 | 2 x 5 | 50 | |||
| ISP06D09-1000270 | 100 | 12 | 9 | 27 | 2 x 5 | 50 | SPMG0602 | TS2205 | TK06 |
| ISP07D10-1000270 | 100 | 12 | 10 | 27 | 2 x 5 | 50 | |||
| ISP07D11-1000270 | 100 | 12 | 11 | 27 | 2 x 5 | 50 | SPMG0703 | TS2511 | TK08 |
| ISP07D12-1000270 | 100 | 12 | 12 | 27 | 2 x 5 | 50 | |||
| ISP09D14-1000270 | 100 | 16 | 14 | 27 | 2 x 5 | 50 | SPMG0904 | TS3504 | TK15 |
| ISP09D16-1000270 | 100 | 16 | 16 | 27 | 2 x 5 | 50 | |||
| ISP05D06-1250320 | 125 | 12 | 6 | 32 | 2 x 6 | 65 | |||
| ISP05D07-1250320 | 125 | 12 | 7 | 32 | 2 x 6 | 65 | SPMG0502 | TS2203 | TK06 |
| ISP06D08-1250320 | 125 | 12 | 8 | 32 | 2 x 6 | 65 | SPMG0602 | TS2205 | TK06 |
| ISP06D10-1250320 | 125 | 12 | 10 | 32 | 2 x 6 | 65 | |||
| ISP07D11-1250320 | 125 | 12 | 11 | 32 | 2 x 6 | 65 | |||
| ISP07D12-1250320 | 125 | 12 | 12 | 32 | 2 x 6 | 65 | SPMG0703 | TS2511 | TK08 |
| ISP09D14-1250320 | 125 | 16 | 14 | 32 | 2 x 6 | 65 | SPMG0904 | TS3504 | TK15 |
| ISP09D16-1250320 | 125 | 16 | 16 | 32 | 2 x 6 | 65 | |||
| ISP11D18-1250320 | 125 | 20 | 18 | 32 | 2 x 5 | 65 | |||
| ISP11D20-1250320 | 125 | 20 | 20 | 32 | 2 x 5 | 65 | SPMG1104 | TS4006 | TK15 |
| ISP07D11-1600400 | 160 | 12 | 11 | 40 | 2 x 8 | 75 | SPMG0703 | TS2511 | TK08 |
| ISP07D12-1600400 | 160 | 12 | 12 | 40 | 2 x 8 | 75 | |||
| ISP09D14-1600400 | 160 | 16 | 14 | 40 | 2 x 8 | 75 | |||
| ISP09D16-1600400 | 160 | 16 | 16 | 40 | 2 x 8 | 75 | SPMG0904 | TS3504 | TK15 |
| ISP11D18-1600400 | 160 | 20 | 18 | 40 | 2 x 6 | 75 | |||
| ISP11D20-1600400 | 160 | 20 | 20 | 40 | 2 x 6 | 75 | SPMG1104 | TS4006 | TK15 |
| ISP09D14-2000400 | 200 | 16 | 14 | 40 | 2 x 9 | 80 | |||
| ISP09D16-2000400 | 200 | 16 | 16 | 40 | 2 x 9 | 80 | SPMG0904 | TS3504 | TK15 |
| ISP11D18-2000400 | 200 | 20 | 18 | 40 | 2 x 9 | 80 | |||
| ISP11D20-2000400 | 200 | 20 | 20 | 40 | 2 x 7 | 80 | SPMG1104 | TS4006 | TK15 |
