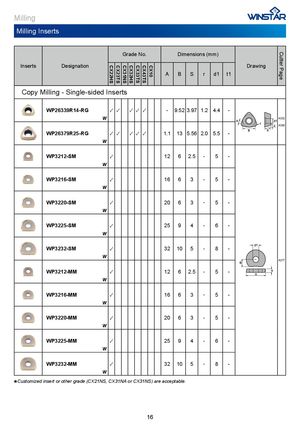

Брошюра Winstar пластины 2021

Grade No. Dimensions (mm)

Inserts Designation CX22HS CX23TS CX31NS CX32HS CX33TS CX43TS CX10 Drawing

			A	B	S	r	d1	t1
Copy Milling - Single-sided Inserts
WP26339R14-RG		✓ ✓	✓ ✓ ✓ - 9.52 3.97 1.2 4.4					-
	W
WP26379R25-RG		✓ ✓	✓ ✓ ✓ 1.1 13 5.56 2.0 5.5					-
	W
WP3212-SM		✓	12	6	2.5	-	5	-
	W
WP3216-SM		✓	16	6	3	-	5	-
	W
WP3220-SM		✓	20	6	3	-	5	-
	W
WP3225-SM		✓	25	9	4	-	6	-
	W
WP3232-SM		✓	32 10		5	-	8	-
	W
WP3212-MM		✓	12	6	2.5	-	5	-
	W
WP3216-MM		✓	16	6	3	-	5	-
	W
WP3220-MM		✓	20	6	3	-	5	-
	W
WP3225-MM		✓	25	9	4	-	6	-
	W
WP3232-MM		✓	32 10		5	-	8	-

W *Customized insert or other grade (CX21NS, CX31NA or CX31NS) are acceptable.

A352 A380

A377
