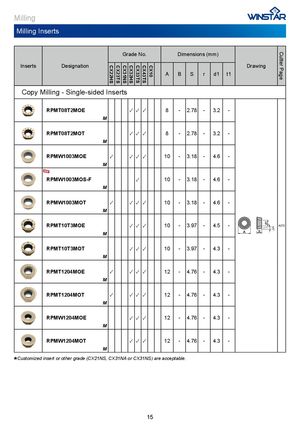

Grade No. Dimensions (mm)

Inserts Designation CX22HS CX23TS CX31NS CX32HS CX33TS CX43TS CX10 Drawing

			A	B	r S d1	t1
Copy Milling - Single-sided Inserts
RPMT08T2MOE		✓ ✓ ✓	8	- 2.78 -	3.2	-
	M
RPMT08T2MOT		✓ ✓ ✓	8	- 2.78 -	3.2	-
	M
RPMW1003MOE		✓ ✓ ✓ ✓	10	- 3.18 -	4.6	-
	M
RPMW1003MOS-F			✓ 10	- 3.18 -	4.6	-
	M
RPMW1003MOT		✓ ✓ ✓ ✓	10	- 3.18 -	4.6	-
	M
RPMT10T3MOE		✓ ✓ ✓	10	- 3.97 -	4.5	-
						A373
	M
RPMT10T3MOT		✓ ✓ ✓	10	- 3.97 -	4.3	-
	M
RPMT1204MOE		✓ ✓ ✓ ✓	12	- 4.76 -	4.3	-
	M
RPMT1204MOT		✓ ✓ ✓ ✓	12	- 4.76 -	4.3	-
	M
RPMW1204MOE		✓ ✓ ✓	12	- 4.76 -	4.3	-
	M
RPMW1204MOT		✓ ✓ ✓	12	- 4.76 -	4.3	-

M *Customized insert or other grade (CX21NS, CX31NA or CX31NS) are acceptable.
