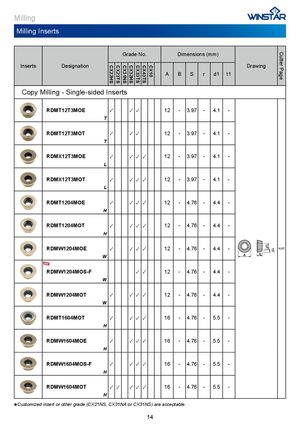

| Inserts | Designation | CX | CX | Gr CX | a CX | d | e CX | No. CX | CX | Di | mensio | ns ( | mm) | Dr | awing | Cutter Pa | |||
| 22H | 23T | 31N | 32H | 33T | 43T | 10 | A | B | S | r | d1 | t1 | ge | ||||||
| Copy | Milling - Single-sid | ed I | n S | ser S | ts S | S | S | S | |||||||||||
| RDMT12T3MOE | T | ✓ | ✓ | ✓ | 12 | - | 3.97 | - | 4.1 | - | |||||||||
| RDMT12T3MOT | T | ✓ | ✓ | ✓ | 12 | - | 3.97 | - | 4.1 | - | |||||||||
| RDMX12T3MOE | L | ✓ | ✓ | ✓ | ✓ | 12 | - | 3.97 | - | 4.1 | - | ||||||||
| RDMX12T3MOT | L | ✓ | ✓ | ✓ | ✓ | 12 | - | 3.97 | - | 4.1 | - | ||||||||
| RDMT1204MOE | H | ✓ | ✓ | ✓ | ✓ | 12 | - | 4.76 | - | 4.4 | - | ||||||||
| RDMT1204MOT | H | ✓ | ✓ | ✓ | ✓ | 12 | - | 4.76 | - | 4.4 | - | ||||||||
| RDMW1204MOE | W | ✓ | ✓ | ✓ | ✓ | 12 | - | 4.76 | - | 4.4 | - | A367 | |||||||
| RDMW1204MOS-F | W | ✓ | ✓ | 12 | - | 4.76 | - | 4.4 | - | ||||||||||
| RDMW1204MOT | W | ✓ | ✓ | ✓ | ✓ | 12 | - | 4.76 | - | 4.4 | - | ||||||||
| RDMT1604MOT | H | ✓ | ✓ | ✓ | ✓ | 16 | - | 4.76 | - | 5.5 | - | ||||||||
| RDMW1604MOE | H | ✓ | ✓ | ✓ | ✓ | 16 | - | 4.76 | - | 5.5 | - | ||||||||
| RDMW1604MOS-F | H | ✓ | ✓ | ✓ | ✓ | 16 | - | 4.76 | - | 5.5 | - | ||||||||
| RDMW1604MOT | H | ✓ | ✓ | ✓ | ✓ | ✓ | 16 | - | 4.76 | - | 5.5 | - |
