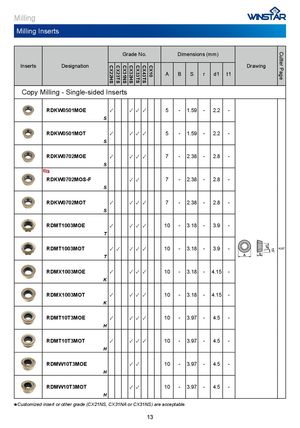

| Inserts | Designation | CX | CX | Gr CX | a CX | d | e CX | No. CX | CX | Di | mensio | ns ( | mm) | Dr | awing | Cutter Pa | |||
| 22H | 23T | 31N | 32H | 33T | 43T | 10 | A | B | S | r | d1 | t1 | ge | ||||||
| Copy | Milling - Single-sid | ed I | n S | ser S | ts S | S | S | S | |||||||||||
| RDKW0501MOE | S | ✓ | ✓ | ✓ | ✓ | 5 | - | 1.59 | - | 2.2 | - | ||||||||
| RDKW0501MOT | S | ✓ | ✓ | ✓ | ✓ | 5 | - | 1.59 | - | 2.2 | - | ||||||||
| RDKW0702MOE | S | ✓ | ✓ | ✓ | ✓ | 7 | - | 2.38 | - | 2.8 | - | ||||||||
| RDKW0702MOS-F | S | ✓ | ✓ | 7 | - | 2.38 | - | 2.8 | - | ||||||||||
| RDKW0702MOT | S | ✓ | ✓ | ✓ | ✓ | 7 | - | 2.38 | - | 2.8 | - | ||||||||
| RDMT1003MOE | T | ✓ | ✓ | ✓ | ✓ | 10 | - | 3.18 | - | 3.9 | - | ||||||||
| RDMT1003MOT | T | ✓ | ✓ | ✓ | ✓ | ✓ | 10 | - | 3.18 | - | 3.9 | - | A367 | ||||||
| RDMX1003MOE | K | ✓ | ✓ | ✓ | ✓ | 10 | - | 3.18 | - | 4.15 | - | ||||||||
| RDMX1003MOT | K | ✓ | ✓ | ✓ | ✓ | 10 | - | 3.18 | - | 4.15 | - | ||||||||
| RDMT10T3MOE | H | ✓ | ✓ | ✓ | ✓ | 10 | - | 3.97 | - | 4.5 | - | ||||||||
| RDMT10T3MOT | H | ✓ | ✓ | ✓ | ✓ | 10 | - | 3.97 | - | 4.5 | - | ||||||||
| RDMW10T3MOE | H | ✓ | ✓ | 10 | - | 3.97 | - | 4.5 | - | ||||||||||
| RDMW10T3MOT | H | ✓ | ✓ | 10 | - | 3.97 | - | 4.5 | - |
