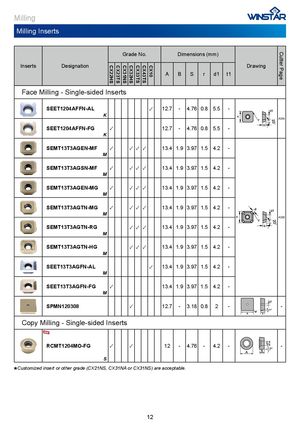

Milling Inserts Milling Inserts

Grade No. Dimensions (mm)

Inserts Designation CX22HS CX23TS CX31NS CX32HS CX33TS CX43TS CX10 Drawing

Ad1 r S B t1
Face Milling - Single-sided Inserts
SEET1204AFFN-AL✓ 12.7 - 4.76 0.8 5.5-
K
A364
SEET1204AFFN-FG✓12.7 - 4.76 0.8 5.5-
K
SEMT13T3AGEN-MF✓✓ ✓ ✓13.4 1.9 3.97 1.5 4.2-
M
SEMT13T3AGSN-MF✓✓ ✓ ✓13.4 1.9 3.97 1.5 4.2-
M
SEMT13T3AGEN-MG✓✓ ✓ ✓13.4 1.9 3.97 1.5 4.2-
M
SEMT13T3AGTN-MG✓✓ ✓ ✓13.4 1.9 3.97 1.5 4.2-
M
A360
SEMT13T3AGTN-RG✓ ✓ ✓13.4 1.9 3.97 1.5 4.2-
M
SEMT13T3AGTN-HG✓ ✓ ✓13.4 1.9 3.97 1.5 4.2-
M
SEET13T3AGFN-AL✓ 13.4 1.9 3.97 1.5 4.2-
M
SEET13T3AGFN-FG✓13.4 1.9 3.97 1.5 4.2-
M
SPMN120308✓12.7 - 3.18 0.8- 2 -
Copy Milling - Single-sided Inserts
RCMT1204MO-FG✓✓12- 4.2 - 4.76 - -

S *Customized insert or other grade (CX21NS, CX31NA or CX31NS) are acceptable.
