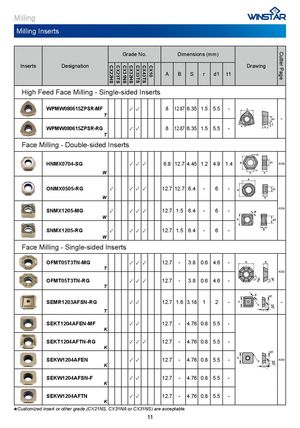

Брошюра Winstar пластины 2021

Grade No. Dimensions (mm)

Inserts Designation CX22HS CX23TS CX31NS CX32HS CX33TS CX43TS CX10 Drawing

			A	d1 r S B t1
High Feed Face Milling - Single-sided Inserts
WPMW080615ZPSR-MF		✓ ✓	8 12.87 6.35 1.5 5.5	-
	T
WPMW080615ZPSR-RG		✓ ✓	8 12.87 6.35 1.5 5.5	-
	T
Face Milling - Double-sided Inserts
HNMX0704-SG		✓ ✓ ✓	6.8 12.7 4.45 1.2 4.9 1.4	A358
	W
ONMX0505-RG		✓ ✓ ✓ ✓	12.7 12.7 6.4	6 - -
	W
SNMX1205-MG		✓ ✓ ✓ ✓	12.7 1.5 6.4	A354 6 - -
	W
SNMX1205-RG		✓ ✓ ✓ ✓	12.7 1.5 6.4	6 - -
	W
Face Milling - Single-sided Inserts
OFMT05T3TN-MG		✓ ✓ ✓	12.7 -	3.8 0.6 4.6 -
	T
				A362
OFMT05T3TN-RG		✓ ✓ ✓	12.7 -	3.8 0.6 4.6 -
	T
SEMR1203AFSN-RG		✓ ✓	12.7 1.6 3.18 1	- 2 -
	T
SEKT1204AFEN-MF		✓ ✓	12.7 - 4.76 0.8 5.5	-
	K
SEKT1204AFTN-RG		✓ ✓ ✓	12.7 - 4.76 0.8 5.5	-
	K
SEKW1204AFEN		✓ ✓	12.7 - 4.76 0.8 5.5	A364 -
	K
SEKW1204AFSN-F		✓ ✓	12.7 - 4.76 0.8 5.5	-
	K
SEKW1204AFTN		✓ ✓	12.7 - 4.76 0.8 5.5	-

Брошюра Winstar пластины 2021 - страница 14
