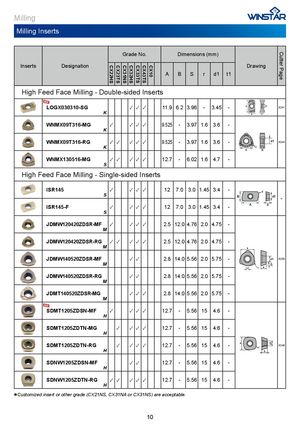

Брошюра Winstar пластины 2021 - страница 13

Предыдущая страница Следующая страница

Навигация

Grade No. Dimensions (mm)

Inserts Designation CX22HS CX23TS CX31NS CX32HS CX33TS CX43TS CX10 Drawing

ABSrd1t1
High Feed Face Milling - Double-sided Inserts
LOGX030310-SG✓ ✓ ✓11.9 6.2 3.96 - 3.45 -A341
K
WNMX09T316-MG✓✓ ✓ ✓9.525 - 3.97 1.6 3.6-
K
WNMX09T316-RG✓ ✓✓ ✓ ✓9.525 - 3.97 1.6 3.6A344 -
K
WNMX130516-MG✓ ✓✓ ✓ ✓12.7 - 6.02 1.6 4.7-
S
High Feed Face Milling - Single-sided Inserts
ISR145✓✓ ✓ ✓12 7.0 3.0 1.45 3.4-
S-
ISR145-F✓✓ ✓ ✓12 7.0 3.0 1.45 3.4-
S
JDMW120420ZDSR-MF✓✓ ✓ ✓2.5 12.0 4.76 2.0 4.75 -
M
JDMW120420ZDSR-RG✓ ✓✓ ✓ ✓2.5 12.0 4.76 2.0 4.75 -
M
JDMW140520ZDSR-MF✓ ✓2.8 14.0 5.56 2.0 5.75 -
A350
M
JDMW140520ZDSR-RG✓ ✓2.8 14.0 5.56 2.0 5.75 -
M
JDMT140520ZDSR-MG✓ ✓ ✓2.8 14.0 5.56 2.0 5.75 -
M
SDMT1205ZDSN-MF✓✓ ✓ ✓12.7 - 5.56 15 4.6-
H
SDMT1205ZDTN-MG✓ ✓ ✓ ✓12.7 - 5.56 15 4.6-
H
SDMT1205ZDTN-RG✓ ✓ ✓ ✓12.7 - 5.56 15 4.6A348 -
H
SDNW1205ZDSN-MF✓ ✓12.7 - 5.56 15 4.6-
H
SDNW1205ZDTN-RG✓ ✓✓ ✓ ✓12.7 - 5.56 15 4.6-

H
