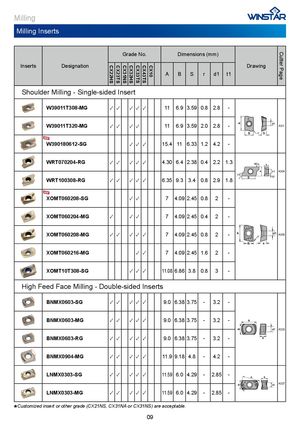

| Inserts | Designation | C | C | Gr C | a C | d | e No. C C C | Dim | ensio | ns ( | mm) | Draw | ing | Cutter P | ||
| Shoul | der Milling - Single- | sided X22HS | In X23TS | se X31NS | r X32HS | t | X33TS X43TS X10 | A | B | S | r | d1 | t1 | age | ||
| W39011T308-MG | ✓ | ✓ | ✓ | ✓✓ | 11 | 6.9 | 3.59 | 0.8 | 2.8 | - | ||||||
| W39011T320-MG | ✓ | ✓ | ✓ | ✓ | 11 | 6.9 | 3.59 | 2.0 | 2.8 | - | A311 | |||||
| W390180612-SG | ✓ | ✓✓ | 15.4 | 11 | 6.33 | 1.2 | 4.2 | - | ||||||||
| WRT070204-RG | ✓ | ✓ | ✓ | ✓✓ | 4.30 | 6.4 | 2.38 | 0.4 | 2.2 | 1.3 | 90 | s d1 ° | A304 | |||
| WRT100308-RG | ✓ | ✓ | ✓ | ✓✓ | 6.35 | 9.3 | 3.4 | 0.8 | 2.9 | 1.8 | r t1 | 15° | ||||
| XOMT060208-SG | ✓ | ✓ | 7 | 4.09 | 2.45 | 0.8 | 2 | - | ||||||||
| XOMT060204-MG | ✓ | ✓ | ✓ | 7 | 4.09 | 2.45 | 0.4 | 2 | - | |||||||
| XOMT060208-MG | ✓ | ✓ | ✓ | ✓✓ | 7 | 4.09 | 2.45 | 0.8 | 2 | - | A300 | |||||
| XOMT060216-MG | ✓✓ | 7 | 4.09 | 2.45 | 1.6 | 2 | - | |||||||||
| XOMT10T308-SG | ✓ | ✓✓ | 11.08 | 6.86 | 3.8 | 0.8 | 3 | - | ||||||||
| High | Feed Face Milling - | Doub | le- | si | d | e | d Inse | rts | ||||||||
| BNMX0603-SG | ✓ | ✓ | ✓ | ✓✓ | 9.0 | 6.38 | 3.75 | - | 3.2 | - | ||||||
| BNMX0603-MG | ✓ | ✓ | ✓ | ✓✓ | 9.0 | 6.38 | 3.75 | - | 3.2 | - | ||||||
| BNMX0603-RG | ✓ | ✓ | ✓ | ✓✓ | 9.0 | 6.38 | 3.75 | - | 3.2 | - | A333 | |||||
| BNMX0904-MG | ✓ | ✓ | ✓ | ✓✓ | 11.9 | 9.18 | 4.8 | - | 4.2 | - | ||||||
| LNMX0303-SG | ✓ | ✓ | ✓ | ✓✓ | 11.59 | 6.0 | 4.29 | - | 2.85 | - | ||||||
| LNMX0303-MG | ✓ | ✓ | ✓ | ✓✓ | 11.59 | 6.0 | 4.29 | - | 2.85 | - | A337 |
