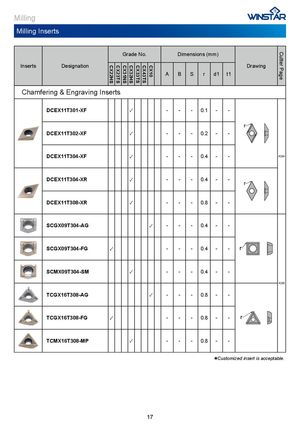

| Inserts | Designation | C | C | G C | rade C C | No. C C | Dim | ensi | ons (m | m) | Drawi | ng Cutter P | ||
| Chamf | ering & Engraving | Insert X22HS | s X23TS | X31NS | X32HS X33TS | X43TS X10 | A | B | S | r | d1 | t1 | age | |
| DCEX11T301-XF | ✓ | - | - | - | 0.1 | - | - | |||||||
| DCEX11T302-XF | ✓ | - | - | - | 0.2 | - | - | |||||||
| DCEX11T304-XF | ✓ | - | - | - | 0.4 | - | - | A384 | ||||||
| DCEX11T304-XR | ✓ | - | - | - | 0.4 | - | - | |||||||
| DCEX11T308-XR | ✓ | - | - | - | 0.8 | - | - | |||||||
| SCGX09T304-AG | ✓ | - | - | - | 0.4 | - | - | |||||||
| SCGX09T304-FG | ✓ | - | - | - | 0.4 | - | - | |||||||
| SCMX09T304-SM | ✓ | - | - | - | 0.4 | - | - | |||||||
| TCGX16T308-AG | ✓ | - | - | - | 0.8 | - | - | A385 | ||||||
| TCGX16T308-FG | ✓ | - | - | - | 0.8 | - | - | |||||||
| TCMX16T308-MP | ✓ | - | - | - | 0.8 | - | - |
*Customized insert is acceptable.
