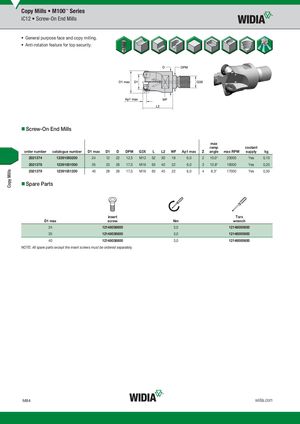

- General purpose face and copy milling.
- Anti-rotation feature for top security.
- Screw-On End Mills
| order number | catalogue number | D1 max | D1 | D | DPM | G3X | L | L2 | WF | Ap1 max | Z max ramp angle | max RPM | coolant supply | kg |
| 2021374 | 12391050200 | 24 | 12 | 22 | 12,5 | M12 | 52 | 30 | 19 | 6,0 | 2 10.0° | 23000 | Yes | 0,10 |
| 2021378 | 12391051000 | 35 | 23 | 28 | 17,0 | M16 | 63 | 40 | 22 | 6,0 | 3 10.8° | 19000 | Yes | 0,20 |
| 2021379 | 12391051200 | 40 | 28 | 28 | 17,0 | M16 | 63 | 40 | 22 | 6,0 | 4 8.3° | 17000 | Yes | 0,30 |
- Spare Parts
insert Torx
| D1 max | screw | Nm | wrench | ||
| 24 | 12148038800 | 3,0 | 12148000600 | ||
| 35 | 12148038800 | 3,0 | 12148000600 | ||
| 40 | 12148038800 | 3,0 | 12148000600 |
NOTE: All spare parts except the insert screws must be ordered separately.
