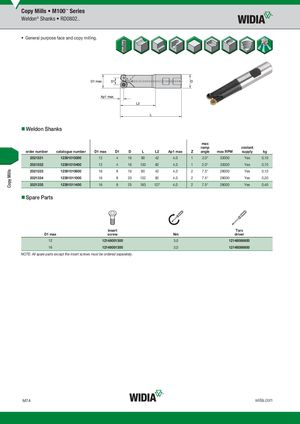

- General purpose face and copy milling.
- Weldon Shanks
| order number | catalogue number | D1 max | D1 | D | L | L2 | Ap1 max | Z | max ramp angle | max RPM | coolant supply | kg |
| 2021331 | 12391010000 | 12 | 4 | 16 | 90 | 42 | 4,0 | 1 | 2.0° | 33000 | Yes | 0,10 |
| 2021332 | 12391010400 | 12 | 4 | 16 | 130 | 82 | 4,0 | 1 | 2.0° | 33000 | Yes | 0,10 |
| 2021333 | 12391010600 | 16 | 8 | 16 | 90 | 42 | 4,0 | 2 | 7.5° | 28000 | Yes | 0,10 |
| 2021334 | 12391011000 | 16 | 8 | 20 | 132 | 82 | 4,0 | 2 | 7.5° | 28000 | Yes | 0,20 |
| 2021335 | 12391011400 | 16 | 8 | 25 | 183 | 127 | 4,0 | 2 | 7.5° | 28000 | Yes | 0,40 |
- Spare Parts
insert Torx
| D1 max | screw | Nm | driver | ||
| 12 | 12148001300 | 3,0 | 12148086600 | ||
| 16 | 12148001300 | 3,0 | 12148086600 |
NOTE: All spare parts except the insert screws must be ordered separately.
