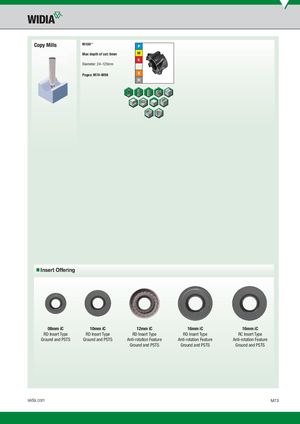

Copy Mills M100™ Max depth of cut: 6mm
Diameter: 24–125mm
Pages: M74–M99
P M K
S H
Insert Offering
| 08mm iC | 10mm iC | 12mm iC | 16mm iC | 16mm iC |
| RD Insert Type | RD Insert Type | RD Insert Type | RD Insert Type | RC Insert Type |
| Ground and PSTS | Ground and PSTS | Anti-rotation Feature | Anti-rotation Feature | Anti-rotation Feature |
| Ground and PSTS | Ground and PSTS | Ground and PSTS |
