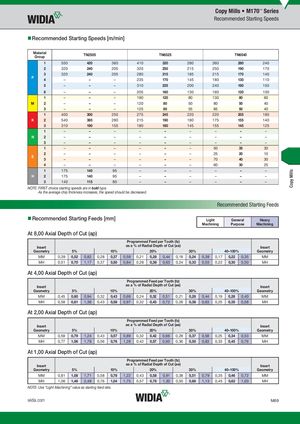

Общий каталог Widia 2017 - страница 973
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
- Recommended Starting Speeds [m/min]
| Material Group | TN2505 | TN6525 | TN6540 | ||||||
| 1 | 550 | 420 | 360 | 410 | 320 | 280 | 360 | 280 | 240 |
| 2 | 320 | 240 | 205 | 320 | 250 | 215 | 250 | 190 | 170 |
| 3 | 320 | 240 | 205 | 280 | 215 | 185 | 215 | 170 | 140 |
| P 4 | – | – | – | 235 | 170 | 145 | 180 | 130 | 110 |
| 5 | – | – | – | 310 | 235 | 200 | 240 | 180 | 150 |
| 6 | – | – | – | 205 | 160 | 130 | 160 | 120 | 100 |
| 1 | – | – | – | 190 | 120 | 80 | 130 | 80 | 60 |
| M 2 | – | – | – | 120 | 80 | 50 | 80 | 50 | 40 |
| 3 | – | – | – | 125 | 80 | 55 | 85 | 50 | 40 |
| 1 | 400 | 300 | 250 | 275 | 245 | 220 | 220 | 205 | 180 |
| K 2 | 540 | 365 | 280 | 215 | 190 | 180 | 175 | 155 | 140 |
| 3 | 310 | 190 | 155 | 180 | 160 | 145 | 155 | 145 | 125 |
| 1 | – | – | – | – | – | – | – | – | – |
| N 2 | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – |
| 1 | – | – | – | – | – | – | 50 | 35 | 30 |
| 2 | – | – | – | – | – | – | 25 | 20 | 10 |
| S 3 | – | – | – | – | – | – | 70 | 40 | 30 |
| 4 | – | – | – | – | – | – | 60 | 30 | 25 |
| 1 | 175 | 140 | 95 | – | – | – | – | – | – |
| H 2 | 175 | 140 | 95 | – | – | – | – | – | – |
| 3 | 140 | 115 | 80 | – | – | – | – | – | – |
NOTE: FIRST choice starting speeds are in bold type. As the average chip thickness increases, the speed should be decreased.
- Recommended Starting Feeds [mm]
Recommended Starting Feeds
| Light | General | Heavy | |
| Machining | Purpose | Machining |
| ecomm | ne | ar | ng e | es [ | m] | Lig Machi | ht ning | Gen Purp | eral ose | Heavy Machining | ||||||
| 8,00 Axia Insert Geometry | l Dep | th of C 5% | ut (a | p) | 10% | Prog as a | ramme % of Ra | dFeedp dial Dep 20% | er Tooth th of Cu | (fz) t (ae) | 30% | 40–100% | Insert Geometry | |||
| MM | 0,39 | 0,52 | 0,82 | 0,28 | 0,37 | 0,59 | 0,21 | 0,28 | 0,44 | 0,18 | 0,24 | 0,38 | 0,17 | 0,22 | 0,35 | MM |
| MH | 0,51 | 0,70 | 1,17 | 0,37 | 0,50 | 0,84 | 0,28 | 0,38 | 0,63 | 0,24 | 0,33 | 0,55 | 0,22 | 0,30 | 0,50 | MH |
Programmed Feed per Tooth (fz) as a % of Radial Depth of Cut (ae) Insert Insert
Geometry 5% 10% 20% 30% 40–100% Geometry
| Insert Geometry | 5% | 10% | Pro as a | gramme % of Ra | dFeedp dial Dep 20% | er Tooth th of Cu | (fz) t (ae) | 30% | 40–100% | Insert Geometry | ||||||
| MM | 0,45 | 0,60 | 0,94 | 0,32 | 0,43 | 0,68 | 0,24 | 0,32 | 0,51 | 0,21 | 0,28 | 0,44 | 0,19 | 0,26 | 0,40 | MM |
| MH | 0,59 | 0,81 | 1,36 | 0,43 | 0,58 | 0,97 | 0,32 | 0,43 | 0,72 | 0,28 | 0,38 | 0,63 | 0,25 | 0,35 | 0,58 | MH |
Programmed Feed per Tooth (fz)
Insert as a % of Radial Depth of Cut (ae) Insert
Geometry 5% 10% 20% 30% 40–100% Geometry
| Insert Geometry | 5% | 10% | Prog as a | ramme % of Ra | dFeedp dial Dep 20% | er Tooth th of Cut | (fz) (ae) | 30% | 40–100% | Insert Geometry | ||||||
| MM | 0,59 | 0,79 | 1,24 | 0,43 | 0,57 | 0,89 | 0,32 | 0,42 | 0,66 | 0,28 | 0,37 | 0,58 | 0,25 | 0,34 | 0,53 | MM |
| MH | 0,77 | 1,06 | 1,79 | 0,56 | 0,76 | 1,28 | 0,42 | 0,57 | 0,95 | 0,36 | 0,50 | 0,83 | 0,33 | 0,45 | 0,76 | MH |
as a % of Radial Depth of Cut (ae) Insert Insert
Geometry 5% 10% 20% 30% 40–100% Geometry
MM 0,81 1,08 1,71 0,58 0,78 1,22 0,43 0,58 0,91 0,38 0,51 0,79 0,35 0,46 0,72 MM
| Insert Geometry | 5% | 10% | Prog as a | ramme % of Ra | dFeedp dial Dep 20% | er Toot th of Cu | h (fz) t (ae) | 30% | 40–100% | Insert Geometry | ||||||
| MM | 0,81 | 1,08 | 1,71 | 0,58 | 0,78 | 1,22 | 0,43 | 0,58 | 0,91 | 0,38 | 0,51 | 0,79 | 0,35 | 0,46 | 0,72 | MM |
| MH | 1,06 | 1,46 | 2,48 | 0,76 | 1,04 | 1,75 | 0,57 | 0,78 | 1,30 | 0,50 | 0,68 | 1,13 | 0,45 | 0,62 | 1,03 | MH |
