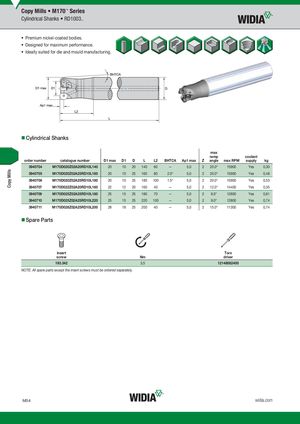

Cylindrical Shanks RD1003..
- Premium nickel-coated bodies.
- Designed for maximum performance.
- Ideally suited for die and mould manufacturing.
- Cylindrical Shanks
| order number | catalogue number | D1 max | D1 | D | L | L2 | BHTCA | Ap1 max | Z max ramp angle | max RPM | coolant supply | kg |
| 3940704 | M170D020Z02A20RD10L140 | 20 | 10 | 20 | 140 | 60 | — | 5,0 | 2 20.0° | 15900 | Yes | 0,30 |
| 3940705 | M170D020Z02A25RD10L160 | 20 | 10 | 25 | 160 | 80 | 2.0° | 5,0 | 2 20.0° | 15900 | Yes | 0,48 |
| 3940706 | M170D020Z02A25RD10L180 | 20 | 10 | 25 | 180 | 100 | 1.5° | 5,0 | 2 20.0° | 15900 | Yes | 0,53 |
| 3940707 | M170D022Z02A20RD10L160 | 22 | 12 | 20 | 160 | 40 | — | 5,0 | 2 12.0° | 14400 | Yes | 0,35 |
| 3940709 | M170D025Z02A25RD10L180 | 25 | 15 | 25 | 180 | 70 | — | 5,0 | 2 9.0° | 12800 | Yes | 0,61 |
| 3940710 | M170D025Z02A25RD10L220 | 25 | 15 | 25 | 220 | 100 | — | 5,0 | 2 9.0° | 12800 | Yes | 0,74 |
| 3940711 | M170D028Z02A25RD10L200 | 28 | 18 | 25 | 200 | 40 | — | 5,0 | 2 15.0° | 11300 | Yes | 0,74 |
- Spare Parts
insert Torx
| screw | Nm | driver | |
| 193.342 | 3,5 | 12148082400 |
NOTE: All spare parts except the insert screws must be ordered separately.
