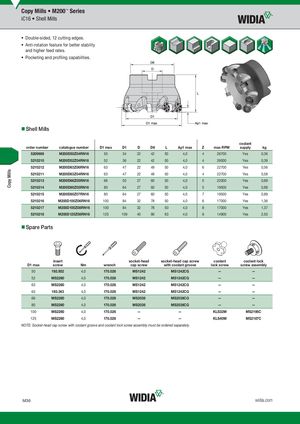

- Double-sided, 12 cutting edges.
- Anti-rotation feature for better stability and higher feed rates.
- Pocketing and profiling capabilities.
- Shell Mills
| order number | catalogue number | D1 max | D1 | D | D6 | L | Ap1 max | Z | max RPM | coolant supply | kg |
| 5209989 | M200D50Z04RN16 | 50 | 34 | 22 | 42 | 50 | 4,0 | 4 | 26700 | Yes | 0,36 |
| 5210210 | M200D52Z04RN16 | 52 | 36 | 22 | 42 | 50 | 4,0 | 4 | 26000 | Yes | 0,39 |
| 5210212 | M200D63Z06RN16 | 63 | 47 | 22 | 49 | 50 | 4,0 | 6 | 22700 | Yes | 0,56 |
| 5210211 | M200D63Z04RN16 | 63 | 47 | 22 | 49 | 50 | 4,0 | 4 | 22700 | Yes | 0,58 |
| 5210213 | M200D66Z05RN16 | 66 | 50 | 27 | 60 | 50 | 4,0 | 5 | 22000 | Yes | 0,69 |
| 5210214 | M200D80Z05RN16 | 80 | 64 | 27 | 60 | 50 | 4,0 | 5 | 19500 | Yes | 0,88 |
| 5210215 | M200D80Z07RN16 | 80 | 64 | 27 | 60 | 50 | 4,0 | 7 | 19500 | Yes | 0,89 |
| 5210216 | M200D100Z06RN16 | 100 | 84 | 32 | 78 | 50 | 4,0 | 6 | 17000 | Yes | 1,36 |
| 5210217 | M200D100Z08RN16 | 100 | 84 | 32 | 78 | 50 | 4,0 | 8 | 17000 | Yes | 1,37 |
| 5210218 | M200D125Z08RN16 | 125 | 109 | 40 | 90 | 63 | 4,0 | 8 | 14900 | Yes | 2,50 |
- Spare Parts
| insert | socket-head | socket-head cap screw | coolant | coolant lock | |||
| D1 max | screw | Nm | wrench | cap screw | with coolant groove | lock screw | screw assembly |
| D1 max | insert screw | Nm | wrench | socket-head cap screw | socket-head cap screw with coolantgroove | coolant lock screw | coolant lock screw assembly |
| 50 | 192.932 | 4,0 | 170.026 | MS1242 | MS1242CG | — | — |
| 52 | MS2260 | 4,0 | 170.026 | MS1242 | MS1242CG | — | — |
| 63 | MS2260 | 4,0 | 170.026 | MS1242 | MS1242CG | — | — |
| 63 | 193.343 | 4,0 | 170.026 | MS1242 | MS1242CG | — | — |
| 66 | MS2260 | 4,0 | 170.026 | MS2038 | MS2038CG | — | — |
| 80 | MS2260 | 4,0 | 170.026 | MS2038 | MS2038CG | — | — |
| 100 | MS2260 | 4,0 | 170.026 | — | — | KLS32M | MS2195C |
| 125 | MS2260 | 4,0 | 170.026 | — | — | KLS40M | MS2187C |
