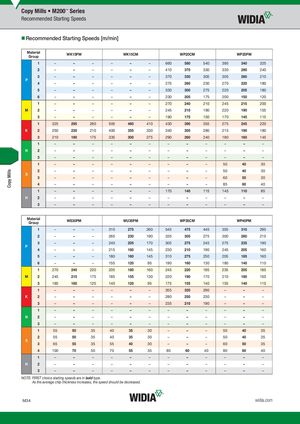

Recommended Starting Speeds [m/min]
| Material Group | WK15PM | WK15CM | WP20CM | WP25PM | ||||||||
| 1 | – | – | – | – | – | – | 660 | 580 | 540 | 395 | 340 | 325 |
| 2 | – | – | – | – | – | – | 410 | 370 | 330 | 330 | 290 | 240 |
| P 3 | – | – | – | – | – | – | 370 | 330 | 305 | 305 | 260 | 210 |
| 4 | – | – | – | – | – | – | 275 | 260 | 230 | 270 | 220 | 180 |
| 5 | – | – | – | – | – | – | 330 | 300 | 275 | 220 | 205 | 180 |
| 6 | – | – | – | – | – | – | 230 | 205 | 175 | 200 | 150 | 120 |
| 1 | – | – | – | – | – | – | 270 | 240 | 210 | 245 | 215 | 200 |
| M 2 | – | – | – | – | – | – | 245 | 210 | 190 | 220 | 190 | 155 |
| 3 | – | – | – | – | – | – | 190 | 175 | 150 | 170 | 145 | 115 |
| 1 | 325 | 295 | 260 | 505 | 460 | 410 | 430 | 390 | 355 | 275 | 245 | 220 |
| K 2 | 250 | 230 | 210 | 400 | 355 | 330 | 340 | 305 | 280 | 215 | 190 | 180 |
| 3 | 210 | 190 | 175 | 335 | 300 | 275 | 290 | 260 | 240 | 180 | 160 | 145 |
| 1 | – | – | – | – | – | – | – | – | – | – | – | – |
| N 2 | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – |
| 1 | – | – | – | – | – | – | – | – | – | 50 | 40 | 30 |
| 2 | – | – | – | – | – | – | – | – | – | 50 | 40 | 30 |
| S 3 | – | – | – | – | – | – | – | – | – | 60 | 50 | 30 |
| 4 | – | – | – | – | – | – | – | – | – | 85 | 60 | 40 |
| 1 | – | – | – | – | – | – | 170 | 140 | 115 | 145 | 110 | 85 |
| H 2 | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – |
Material
WS30PM WU35PM WP35CM WP40PM
Group
| Material Group | WS30PM | WU35PM | WP35CM | WP40PM | ||||||||
| 1 | – | – | – | 310 | 275 | 260 | 545 | 475 | 445 | 355 | 310 | 295 |
| 2 | – | – | – | 265 | 230 | 190 | 335 | 305 | 275 | 300 | 260 | 215 |
| P 3 | – | – | – | 240 | 205 | 170 | 305 | 275 | 245 | 275 | 235 | 190 |
| 4 | – | – | – | 215 | 180 | 145 | 230 | 210 | 190 | 245 | 205 | 160 |
| 5 | – | – | – | 180 | 160 | 145 | 310 | 275 | 250 | 205 | 185 | 160 |
| 6 | – | – | – | 155 | 120 | 95 | 190 | 160 | 130 | 180 | 140 | 110 |
| 1 | 270 | 240 | 220 | 205 | 180 | 160 | 245 | 220 | 185 | 235 | 205 | 185 |
| M 2 | 245 | 215 | 175 | 185 | 155 | 130 | 220 | 190 | 170 | 210 | 180 | 150 |
| 3 | 185 | 160 | 125 | 140 | 120 | 95 | 175 | 155 | 140 | 155 | 140 | 110 |
| 1 | – | – | – | – | – | – | 355 | 320 | 290 | – | – | – |
| K 2 | – | – | – | – | – | – | 280 | 250 | 230 | – | – | – |
| 3 | – | – | – | – | – | – | 235 | 210 | 190 | – | – | – |
| 1 | – | – | – | – | – | – | – | – | – | – | – | – |
| N 2 | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – |
| 1 | 55 | 50 | 35 | 40 | 35 | 30 | – | – | – | 50 | 40 | 35 |
| 2 | 55 | 50 | 35 | 40 | 35 | 30 | – | – | – | 50 | 40 | 35 |
| S 3 | 65 | 55 | 35 | 55 | 40 | 30 | – | – | – | 60 | 50 | 35 |
| 4 | 100 | 70 | 50 | 70 | 55 | 35 | 80 | 60 | 40 | 80 | 60 | 40 |
| 1 | – | – | – | – | – | – | – | – | – | – | – | – |
| H 2 | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – |
