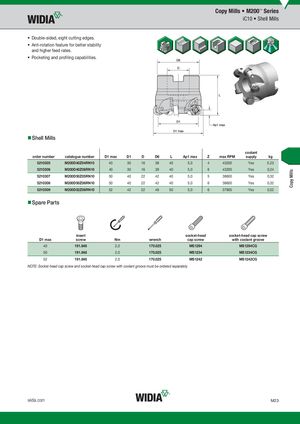

- Double-sided, eight cutting edges.
- Anti-rotation feature for better stability and higher feed rates.
- Pocketing and profiling capabilities.
- Shell Mills
| order number | catalogue number | D1 max | D1 | D | D6 | L | Ap1 max | Z | max RPM | coolant supply | kg |
| 5210305 | M200D40Z04RN10 | 40 | 30 | 16 | 38 | 40 | 5,0 | 4 | 43200 | Yes | 0,23 |
| 5210306 | M200D40Z06RN10 | 40 | 30 | 16 | 38 | 40 | 5,0 | 6 | 43200 | Yes | 0,24 |
| 5210307 | M200D50Z05RN10 | 50 | 40 | 22 | 42 | 40 | 5,0 | 5 | 38600 | Yes | 0,32 |
| 5210308 | M200D50Z06RN10 | 50 | 40 | 22 | 42 | 40 | 5,0 | 6 | 38600 | Yes | 0,32 |
| 5210309 | M200D52Z06RN10 | 52 | 42 | 22 | 49 | 50 | 5,0 | 6 | 37900 | Yes | 0,52 |
- Spare Parts
| insert | socket-head | socket-head cap screw | |||
| D1 max | screw | Nm | wrench | cap screw | with coolant groove |
| D1 max | insert screw | Nm | wrench | socket-head cap screw | socket-head cap screw with coolantgroove |
| 40 | 191.848 | 2,0 | 170.025 | MS1294 | MS1294CG |
| 50 | 191.848 | 2,0 | 170.025 | MS1234 | MS1234CG |
| 52 | 191.848 | 2,0 | 170.025 | MS1242 | MS1242CG |
