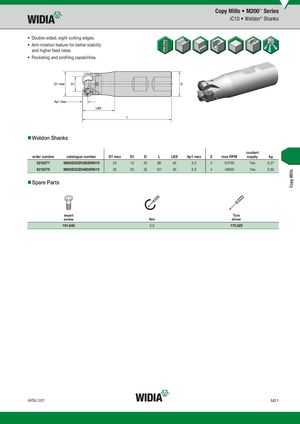

iC10 Weldon ® Shanks
- Double-sided, eight cutting edges.
- Anti-rotation feature for better stability and higher feed rates.
- Pocketing and profiling capabilities.
- Weldon Shanks
coolant
| order number | catalogue number | D1 max | D1 | D | L | LBX | Ap1 max | Z | max RPM | supply | kg | |||
| 5210277 | M200D25Z03B25RN10 | 25 | 15 | 25 | 89 | 40 | 5,0 | 3 | 54700 | Yes | 0,27 | |||
| 5210278 | M200D32Z04B32RN10 | 32 | 22 | 32 | 101 | 40 | 5,0 | 4 | 48300 | Yes | 0,52 |
- Spare Parts
insert Torx
| screw | Nm | driver |
| 191.848 | 2,0 | 170.025 |
