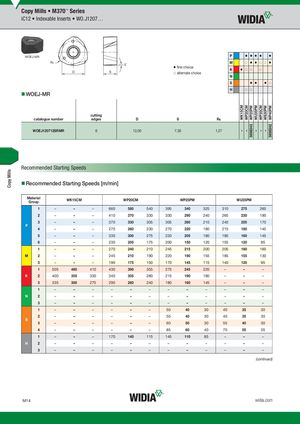

Общий каталог Widia 2017 - страница 918
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
iC12 • Indexable Inserts • WO.J1207…
WOEJ-MR Rε
- WOEJ-MR
5 º D S
fi rst choice alternate choice
P M K N S H
cutting
| catalogue number | edges | D | S | R¡ |
| WOEJ120712SRMR | 6 | 12,00 | 7,30 | 1,27 |
Recommended Starting Speeds
- Recommended Starting Speeds [m/min]
Material
WK15CM WP20CM WP25PM WU35PM
Group
| 1 | – | – | – | 660 | 580 | 540 | 395 | 340 | 325 | 310 | 275 | 260 |
| 2 | – | – | – | 410 | 370 | 330 | 330 | 290 | 240 | 265 | 230 | 190 |
| 3 | – | – | – | 370 | 330 | 305 | 305 | 260 | 210 | 240 | 205 | 170 |
P
| 4 | – | – | – | 275 | 260 | 230 | 270 | 220 | 180 | 215 | 180 | 145 | |
| 5 | – | – | – | 330 | 300 | 275 | 220 | 205 | 180 | 180 | 160 | 145 | |
| 6 | – | – | – | 230 | 205 | 175 | 200 | 150 | 120 | 155 | 120 | 95 | |
| 1 | – | – | – | 270 | 240 | 210 | 245 | 215 | 200 | 205 | 180 | 160 | |
| M | 2 | – | – | – | 245 | 210 | 190 | 220 | 190 | 155 | 185 | 155 | 130 |
| 3 | – | – | – | 190 | 175 | 150 | 170 | 145 | 115 | 140 | 120 | 95 | |
| 1 | 505 | 460 | 410 | 430 | 390 | 355 | 275 | 245 | 220 | – | – | – | |
| K | 2 | 400 | 355 | 330 | 340 | 305 | 280 | 215 | 190 | 180 | – | – | – |
| 3 | 335 | 300 | 275 | 290 | 260 | 240 | 180 | 160 | 145 | – | – | – | |
| 1 | – | – | – | – | – | – | – | – | – | – | – | – | |
| N | 2 | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 1 | – | – | – | – | – | – | 50 | 40 | 30 | 40 | 35 | 30 | |
| 2 | – | – | – | – | – | – | 50 | 40 | 30 | 40 | 35 | 30 |
S
| 3 | – | – | – | – | – | – | 60 | 50 | 30 | 55 | 40 | 30 | |
| 4 | – | – | – | – | – | – | 85 | 60 | 40 | 70 | 55 | 35 | |
| 1 | – | – | – | 170 | 140 | 115 | 145 | 110 | 85 | – | – | – | |
| H | 2 | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – |
(continued)
