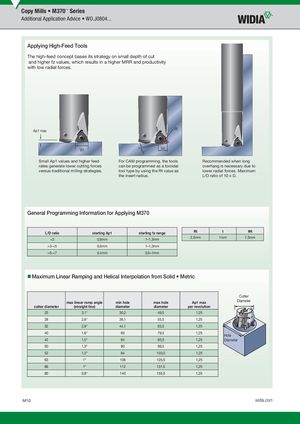

Additional Application Advice • WO.J0804...
Applying High-Feed Tools
The high-feed concept bases its strategy on small depth of cut
and higher fz values, which results in a higher MRR and productivity
with low radial forces.
Rt Ap1 max
Wt Wt
t
| Small Ap1 values and higher feed | For CAM programming, the tools | Recommended when long |
| rates generate lower cutting forces | can be programmed as a toroidal | overhang is necessary due to |
| versus traditional milling strategies. | tool type by using the Rt value as | lower radial forces. Maximum |
the insert radius. L/D ratio of 10 x D.
General Programming Information for Applying M370
L/D ratio starting Ap1 starting fz range
| <3 | 0,9mm | 1–1,3mm |
| >3–<5 | 0,6mm | 1–1,3mm |
| >5–<7 | 0,4mm | 0,6–1mm |
| Rt | t | Wt |
| 2,5mm | 1mm | 7,5mm |
Maximum Linear Ramping and Helical Interpolation from Solid • Metric
Cutter
| max linear ramp angle | min hole | max hole | Diameter Ap1 max | ||
| cutter diameter | (straight line) | diameter | diameter | per revolution | |
| 25 | 3,1° | 30,2 | 49,5 | 1,25 | |
| 28 | 2,6° | 36,1 | 55,5 | 1,25 | |
| 32 | 2,9° | 44,1 | 63,5 | 1,25 | |
| 40 | 1,6° | 60 | 79,5 | 1,25 |
Hole
| 42 | 1,5° | 64 | 83,5 | Diameter 1,25 |
| 50 | 1,3° | 80 | 99,5 | 1,25 |
| 52 | 1,2° | 84 | 103,5 | 1,25 |
| 63 | 1° | 106 | 125,5 | 1,25 |
| 66 | 1° | 112 | 131,5 | 1,25 |
| 80 | 0,8° | 140 | 155,5 | 1,25 |
