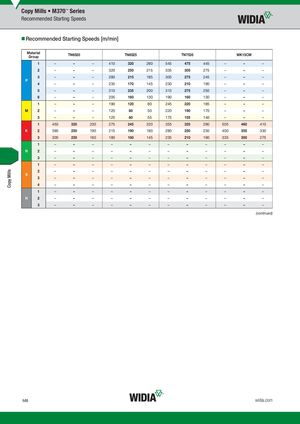

Recommended Starting Speeds [m/min]
Material
TN6520 TN6525 TN7535 WK15CM
Group
| 1 | – | – | – | 410 | 320 | 280 | 545 | 475 | 445 | – | – | – |
| 2 | – | – | – | 320 | 250 | 215 | 335 | 305 | 275 | – | – | – |
| 3 | – | – | – | 280 | 215 | 185 | 305 | 275 | 245 | – | – | – |
P
| 4 | – | – | – | 235 | 170 | 145 | 230 | 210 | 190 | – | – | – | |
| 5 | – | – | – | 310 | 235 | 200 | 310 | 275 | 250 | – | – | – | |
| 6 | – | – | – | 205 | 160 | 130 | 190 | 160 | 130 | – | – | – | |
| 1 | – | – | – | 190 | 120 | 80 | 245 | 220 | 185 | – | – | – | |
| M | 2 | – | – | – | 120 | 80 | 50 | 220 | 190 | 170 | – | – | – |
| 3 | – | – | – | 125 | 80 | 55 | 175 | 155 | 140 | – | – | – | |
| 1 | 450 | 320 | 230 | 275 | 245 | 220 | 355 | 320 | 290 | 505 | 460 | 410 | |
| K | 2 | 390 | 250 | 190 | 215 | 190 | 180 | 280 | 250 | 230 | 400 | 355 | 330 |
| 3 | 300 | 230 | 160 | 180 | 160 | 145 | 235 | 210 | 190 | 335 | 300 | 275 | |
| 1 | – | – | – | – | – | – | – | – | – | – | – | – | |
| N | 2 | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 1 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – |
S
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 1 | – | – | – | – | – | – | – | – | – | – | – | – | |
| H | 2 | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – |
(continued)
