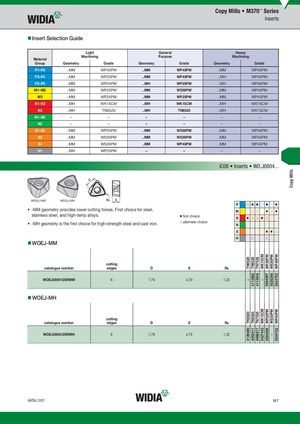

Общий каталог Widia 2017 - страница 911

Copy Mills • M370™ Series
Inserts

„
Insert Selection Guide
Light General Heavy
Machining Purpose Machining
Material
Group Geometry Grade Geometry Grade Geometry Grade
P1–P2 ..MM WP40PM ..MM WP40PM ..MM WP40PM
P3–P4 ..MM WP25PM ..MM WP40PM ..MH WP40PM
P5–P6 ..MM WP25PM ..MH WP25PM ..MH WP40PM
M1–M2 ..MM WP25PM ..MM WS30PM ..MM WP40PM
M3 ..MM WP25PM ..MM WP25PM ..MM WP40PM
K1–K2 ..MH WK15CM ..MH WK15CM ..MH WK15CM
K3 ..MH TN6520 ..MH TN6520 ..MH WK15CM
N1–N2 – – – – – –
N3 – – – – – –
S1–S2 ..MM WP25PM ..MM WS30PM ..MM WP40PM
S3 ..MM WS30PM ..MM WS30PM ..MM WP40PM
S4 ..MM WS30PM ..MM WP40PM ..MM WP40PM
H1 ..MH WP25PM – – – –

iC08 • Inserts • WO.J0804...


Copy Mills
WOEJ-MM WOEJ-MH
P
• -MM geometry provides lower cutting forces. First choice for steel, M
stainless steel, and high-temp alloys.  first choice

K
 alternate choice
• -MH geometry is the first choice for high-strength steel and cast iron. N
S
H
„
WOEJ-MM

WK15CM
WP25PM
WP40PM
WS30PM
TN6520
TN6525
TN7535
cutting
catalogue number edges D S R¡
4113892
4113916
5564597
5520248
5544753
WOEJ080412SRMM 6 7,79 4,70 1,22
–

–


„
WOEJ-MH
WK15CM
WP25PM
WP40PM
WS30PM
TN6520
TN6525
TN7535


cutting
catalogue number edges D S R¡
4136480
4052411
4068517
5427443
5564596
5544752


WOEJ080412SRMH 6 7,79 4,75 1,22
–
