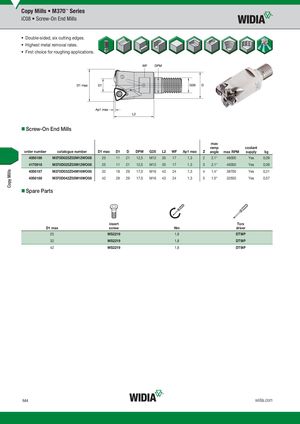

- Double-sided, six cutting edges.
- Highest metal removal rates.
- First choice for roughing applications.
- Screw-On End Mills
max ramp coolant
| order number | catalogue number | D1 max | D1 | D | DPM | G3X | L2 | WF | Ap1 max | Z | angle | max RPM | supply | kg | ||||
| 4056186 | M370D025Z02M12WO08 | 25 | 11 | 21 | 12,5 | M12 | 35 | 17 | 1,3 | 2 | 2.1° | 46000 | Yes | 0,09 | ||||
| 4170918 | M370D025Z03M12WO08 | 25 | 11 | 21 | 12,5 | M12 | 35 | 17 | 1,3 | 3 | 2.1° | 46000 | Yes | 0,09 | ||||
| 4056187 | M370D032Z04M16WO08 | 32 | 18 | 29 | 17,0 | M16 | 43 | 24 | 1,3 | 4 | 1.4° | 38700 | Yes | 0,21 | ||||
| 4056188 | M370D042Z05M16WO08 | 42 | 28 | 29 | 17,0 | M16 | 43 | 24 | 1,3 | 5 | 1.0° | 32500 | Yes | 0,57 |
- Spare Parts
insert Torx
| D1 max | screw | Nm | driver | |
| 25 | MS2219 | 1,8 | DT9IP | |
| 32 | MS2219 | 1,8 | DT9IP | |
| 42 | MS2219 | 1,8 | DT9IP |
