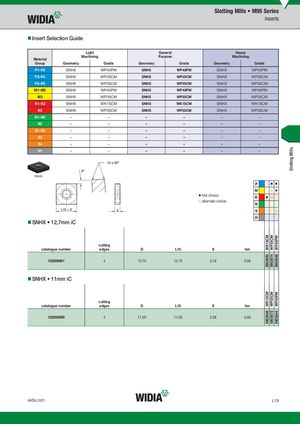

Общий каталог Widia 2017 - страница 889
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
- Insert Selection Guide
| Material | Li Mac | ght hining | Gen Pur | eral pose | He Mac | avy hining |
| Group | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | SNHX | WP40PM | SNHX | WP40PM | SNHX | WP40PM |
| P3–P4 | SNHX | WP35CM | SNHX | WP35CM | SNHX | WP35CM |
| P5–P6 | SNHX | WP35CM | SNHX | WP35CM | SNHX | WP35CM |
| M1–M2 | SNHX | WP40PM | SNHX | WP40PM | SNHX | WP40PM |
| M3 | SNHX | WP35CM | SNHX | WP35CM | SNHX | WP35CM |
| K1–K2 | SNHX | WK15CM | SNHX | WK15CM | SNHX | WK15CM |
| K3 | SNHX | WP35CM | SNHX | WP35CM | SNHX | WP35CM |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | – | – | – | – | – | – |
| S3 | – | – | – | – | – | – |
| S4 | – | – | – | – | – | – |
| H1 | – | – | – | – | – | – |
SNHX
| SNHX | ||||||
| �SNHX • 12,7mm iC catalogue number | cutting edges | D | L10 | S �first choice �alternate choice | hm P M K N S H | WK15CM WP35CM WP40PM � � � � � � � |
| 123506601 | 4 | 12,70 | 12,70 | 3,18 | 0,08 | 5903650 5903674 5903646 |
| �SNHX • 11mm iC | ||||||
| catalogue number | cutting edges | D | L10 | S | hm | WK15CM WP35CM WP40PM |
| 123506599 | 4 | 11,00 | 11,00 | 2,38 | 0,08 | 5903648 5903672 5903644 |
