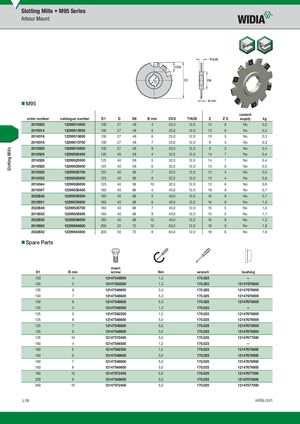

Arbour Mount
- M95
| order number | catalogue number | D1 | D | D6 | B min | CDX | THUB | Z | Z S | coolant supply | kg |
| 2016502 | 12299510400 | 100 | 27 | 48 | 4 | 25,0 | 12,0 | 12 | 6 | No | 0,3 |
| 2016514 | 12299515500 | 100 | 27 | 48 | 5 | 25,0 | 12,0 | 12 | 6 | No | 0,3 |
| 2016516 | 12299515600 | 100 | 27 | 48 | 6 | 25,0 | 12,0 | 10 | 5 | No | 0,3 |
| 2016518 | 12299515700 | 100 | 27 | 48 | 7 | 25,0 | 12,0 | 9 | 3 | No | 0,3 |
| 2016520 | 12299515800 | 100 | 27 | 48 | 8 | 25,0 | 12,0 | 9 | 3 | No | 0,4 |
| 2016524 | 12299520400 | 125 | 40 | 58 | 4 | 32,5 | 12,0 | 14 | 7 | No | 0,4 |
| 2016526 | 12299525500 | 125 | 40 | 58 | 5 | 32,5 | 12,0 | 14 | 7 | No | 0,4 |
| 2016528 | 12299525600 | 125 | 40 | 58 | 6 | 32,5 | 12,0 | 12 | 6 | No | 0,5 |
| 2016530 | 12299525700 | 125 | 40 | 58 | 7 | 32,5 | 12,0 | 12 | 4 | No | 0,5 |
| 2016532 | 12299525800 | 125 | 40 | 58 | 8 | 32,5 | 12,0 | 12 | 4 | No | 0,6 |
| 2016544 | 12299526000 | 125 | 40 | 58 | 10 | 32,5 | 12,0 | 12 | 6 | No | 0,6 |
| 2016547 | 12299530400 | 160 | 40 | 68 | 4 | 45,0 | 12,0 | 18 | 9 | No | 0,7 |
| 2022648 | 12299535500 | 160 | 40 | 68 | 5 | 45,0 | 12,0 | 18 | 9 | No | 0,7 |
| 2016551 | 12299535600 | 160 | 40 | 68 | 6 | 45,0 | 12,0 | 16 | 8 | No | 1,0 |
| 2022649 | 12299535700 | 160 | 40 | 68 | 7 | 45,0 | 12,0 | 15 | 5 | No | 1,0 |
| 2016555 | 12299535800 | 160 | 40 | 68 | 8 | 45,0 | 12,0 | 15 | 5 | No | 1,1 |
| 2022650 | 12299536000 | 160 | 40 | 68 | 10 | 45,0 | 12,0 | 16 | 8 | No | 1,2 |
| 2016562 | 12299546000 | 200 | 22 | 72 | 10 | 63,0 | 12,0 | 18 | 9 | No | 1,9 |
| 2022652 | 12299545800 | 200 | 50 | 72 | 8 | 63,0 | 12,0 | 18 | 6 | No | 1,6 |
- Spare Parts
insert
D1 B min screw Nm wrench bushing
| D1 | B min | insert screw | Nm | wrench | bushing |
| 100 | 4 | 12147548500 | 1,2 | 170.023 | — |
| 100 | 5 | 12147562300 | 1,2 | 170.023 | 12147676800 |
| 100 | 6 | 12147548600 | 5,0 | 170.025 | 12147676900 |
| 100 | 7 | 12147548600 | 5,0 | 170.025 | 12147676900 |
| 100 | 8 | 12147548600 | 5,0 | 170.025 | 12147676900 |
| 125 | 4 | 12147548500 | 1,2 | 170.023 | — |
| 125 | 5 | 12147562300 | 1,2 | 170.023 | 12147676800 |
| 125 | 6 | 12147548600 | 5,0 | 170.025 | 12147676900 |
| 125 | 7 | 12147548600 | 5,0 | 170.025 | 12147676900 |
| 125 | 8 | 12147548600 | 5,0 | 170.025 | 12147676900 |
| 125 | 10 | 12147572400 | 5,0 | 170.025 | 12147677000 |
| 160 | 4 | 12147548500 | 1,2 | 170.023 | — |
| 160 | 5 | 12147562300 | 1,2 | 170.023 | 12147676800 |
| 160 | 6 | 12147548600 | 5,0 | 170.025 | 12147676900 |
| 160 | 7 | 12147548600 | 5,0 | 170.025 | 12147676900 |
| 160 | 8 | 12147548600 | 5,0 | 170.025 | 12147676900 |
| 160 | 10 | 12147572400 | 5,0 | 170.025 | 12147677000 |
| 200 | 8 | 12147548600 | 5,0 | 170.025 | 12147676900 |
| 200 | 10 | 12147572400 | 5,0 | 170.025 | 12147677000 |
