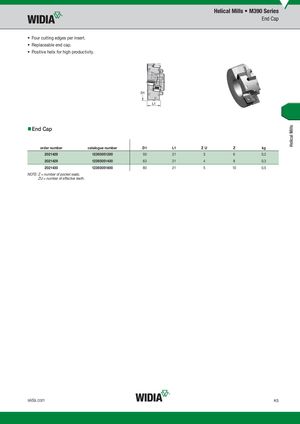

End Cap
- Four cutting edges per insert.
- Replaceable end cap.
- Positive helix for high productivity.
End Cap
| order number | catalogue number | D1 | L1 | Z U | Z | kg | ||
| 2021428 | 12393051200 | 50 | 21 | 3 | 6 | 0,2 | ||
| 2021429 | 12393051400 | 63 | 21 | 4 | 8 | 0,3 | ||
| 2021430 | 12393051800 | 80 | 21 | 5 | 10 | 0,5 |
NOTE: Z = number of pocket seats. ZU = number of effective teeth.
