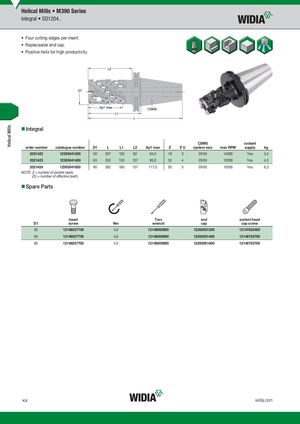

Integral SD1204..
- Four cutting edges per insert.
- Replaceable end cap.
- Positive helix for high productivity.
- Integral
CSMS coolant
| order number | catalogue number | D1 | L | L1 | L2 | Ap1 max | Z | Z U | system size | max RPM | supply | kg | |||
| 2021422 | 12393041200 | 50 | 207 | 105 | 82 | 64,0 | 18 | 3 | DV50 | 14000 | Yes | 3,4 | |||
| 2021423 | 12393041400 | 63 | 232 | 130 | 107 | 85,0 | 32 | 4 | DV50 | 12000 | Yes | 4,3 | |||
| 2021424 | 12393041800 | 80 | 262 | 160 | 137 | 117,0 | 55 | 5 | DV50 | 10500 | Yes | 6,3 |
NOTE: Z = number of pocket seats. ZU = number of effective teeth.
- Spare Parts
| insert | Torx | end | socket-head | |||||
| D1 | screw | Nm | wrench | cap | cap screw | |||
| 50 | 12148037700 | 4,0 | 12148000600 | 12393051200 | 12147625400 | |||
| 63 | 12148037700 | 4,0 | 12148000600 | 12393051400 | 12148783700 | |||
| 80 | 12148037700 | 4,0 | 12148000600 | 12393051800 | 12148783700 |
