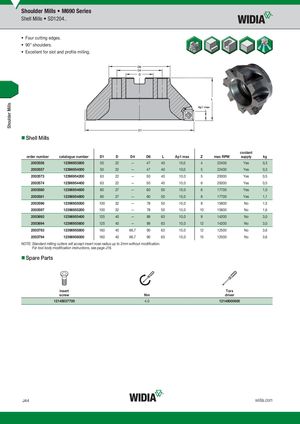

Shell Mills SD1204..
- Four cutting edges.
- 90° shoulders.
- Excellent for slot and profile milling.
- Shell Mills
coolant
| order number | catalogue number | D1 | D | D4 | D6 | L | Ap1 max | Z | max RPM | supply | kg |
| 2003556 | 12396953800 | 50 | 22 | — | 47 | 40 | 10,0 | 4 | 22400 | Yes | 0,3 |
| 2003557 | 12396954000 | 50 | 22 | — | 47 | 40 | 10,0 | 5 | 22400 | Yes | 0,3 |
| 2003573 | 12396954200 | 63 | 22 | — | 50 | 40 | 10,0 | 5 | 20000 | Yes | 0,5 |
| 2003574 | 12396954400 | 63 | 22 | — | 50 | 40 | 10,0 | 6 | 20000 | Yes | 0,5 |
| 2003580 | 12396954600 | 80 | 27 | — | 60 | 50 | 10,0 | 6 | 17700 | Yes | 1,0 |
| 2003581 | 12396954800 | 80 | 27 | — | 60 | 50 | 10,0 | 8 | 17700 | Yes | 1,1 |
| 2003596 | 12396955000 | 100 | 32 | — | 78 | 50 | 10,0 | 8 | 15800 | No | 1,5 |
| 2003597 | 12396955200 | 100 | 32 | — | 78 | 50 | 10,0 | 10 | 15800 | No | 1,6 |
| 2003693 | 12396955400 | 125 | 40 | — | 89 | 63 | 10,0 | 9 | 14200 | No | 3,0 |
| 2003694 | 12396955600 | 125 | 40 | — | 89 | 63 | 10,0 | 12 | 14200 | No | 3,0 |
| 2003793 | 12396955800 | 160 | 40 | 66,7 | 90 | 63 | 10,0 | 12 | 12500 | No | 3,6 |
| 2003794 | 12396956000 | 160 | 40 | 66,7 | 90 | 63 | 10,0 | 15 | 12500 | No | 3,6 |
NOTE: Standard milling cutters will accept insert nose radius up to 2mm without modification. For tool body modification instructions, see page J16.
- Spare Parts
insert Torx
screw Nm driver
12148037700 4,0 12148000600
