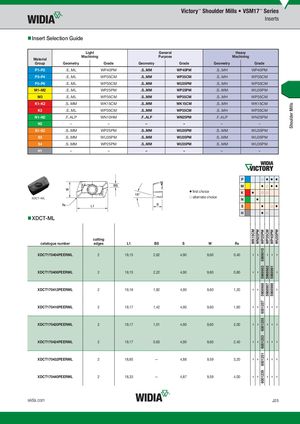

- Material Overview • DIN
- Insert Selection Guide
| Material | Li Mac | ght hining | Gen Pur | eral pose | He Mac | avy hining |
| Group | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | .E..ML | WP40PM | .S..MM | WP40PM | .S..MH | WP40PM |
| P3–P4 | .E..ML | WP35CM | .S..MM | WP35CM | .S..MH | WP35CM |
| P5–P6 | .E..ML | WP35CM | .S..MM | WU35PM | .S..MH | WP35CM |
| M1–M2 | .E..ML | WP25PM | .S..MM | WP25PM | .S..MM | WU35PM |
| M3 | .E..ML | WP35CM | .S..MM | WP35CM | .S..MH | WP35CM |
| K1–K2 | .S..MM | WK15CM | .S..MM | WK15CM | .S..MH | WK15CM |
| K3 | .E..ML | WP35CM | .S..MM | WP35CM | .S..MH | WP35CM |
| N1–N2 | .F..ALP | WN10HM | .F..ALP | WN25PM | .F..ALP | WN25PM |
| N3 | – | – | – | – | – | – |
| S1–S2 | .S..MM | WP25PM | .S..MM | WU35PM | .S..MM | WU35PM |
| S3 | .S..MM | WU35PM | .S..MM | WU35PM | .S..MM | WU35PM |
| S4 | .S..MM | WP25PM | .S..MM | WU35PM | .S..MM | WU35PM |
| H1 | – | – | – | – | – | – |
P
| XDCT-ML XDCT-ML catalogue number | cutting edges | L1 | BS | �first choice �alternate choice S W | P M K N S H R � | � � � � � � � � � � � � � � � � � WK15CM WN25PM WP25PM WP35CM WP40PM WU35PM |
| XDCT170404PEERML | 2 | 19,15 | 2,62 | 4,90 9,60 | 0,40 | – – 5989010 – – – |
| XDCT170408PEERML | 2 | 19,15 | 2,22 | 4,90 9,60 | 0,80 | – – 5988983 5988982 5988981 – |
| XDCT170412PEERML | 2 | 19,16 | 1,82 | 4,90 9,60 | 1,20 | – – 5988988 5988987 5988986 – |
| XDCT170416PEERML | 2 | 19,17 | 1,42 | 4,90 9,60 | 1,60 | – – 6001257 – – – |
| XDCT170420PEERML | 2 | 19,17 | 1,01 | 4,90 9,60 | 2,00 | – – 6001255 – – – |
| XDCT170424PEERML | 2 | 19,17 | 0,63 | 4,90 9,60 | 2,40 | – – 6001253 – – – |
| XDCT170432PEERML | 2 | 18,85 | — | 4,88 9,59 | 3,20 | – – 6001251 – – – |
| XDCT170440PEERML | 2 | 18,33 | — | 4,87 9,59 | 4,00 | – – 6001239 – – – |
