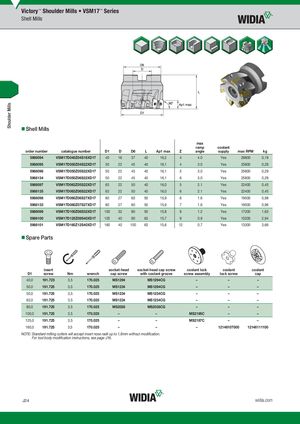

- Shell Mills
| order number | catalogue number | D1 | D | D6 | L | Ap1 max | Z | max ramp angle | coolant supply | max RPM | kg |
| 5988094 | VSM17D040Z04S16XD17 | 40 | 16 | 37 | 40 | 16,2 | 4 | 4.0 | Yes | 29800 | 0,19 |
| 5988095 | VSM17D050Z04S22XD17 | 50 | 22 | 45 | 40 | 16,1 | 4 | 3.0 | Yes | 25800 | 0,28 |
| 5988096 | VSM17D050Z05S22XD17 | 50 | 22 | 45 | 40 | 16,1 | 5 | 3.0 | Yes | 25800 | 0,29 |
| 5988134 | VSM17D050Z06S22XD17 | 50 | 22 | 45 | 40 | 16,1 | 6 | 3.0 | Yes | 25800 | 0,28 |
| 5988097 | VSM17D063Z05S22XD17 | 63 | 22 | 50 | 40 | 16,0 | 5 | 2.1 | Yes | 22400 | 0,45 |
| 5988135 | VSM17D063Z06S22XD17 | 63 | 22 | 50 | 40 | 16,0 | 6 | 2.1 | Yes | 22400 | 0,45 |
| 5988098 | VSM17D080Z06S27XD17 | 80 | 27 | 60 | 50 | 15,9 | 6 | 1.6 | Yes | 19500 | 0,98 |
| 5988133 | VSM17D080Z07S27XD17 | 80 | 27 | 60 | 50 | 15,9 | 7 | 1.6 | Yes | 19500 | 0,96 |
| 5988099 | VSM17D100Z08S32XD17 | 100 | 32 | 80 | 50 | 15,8 | 8 | 1.2 | Yes | 17200 | 1,63 |
| 5988100 | VSM17D125Z09S40XD17 | 125 | 40 | 90 | 63 | 15,7 | 9 | 0.9 | Yes | 15200 | 2,94 |
| 5988101 | VSM17D160Z12S40XD17 | 160 | 40 | 100 | 63 | 15,6 | 12 | 0.7 | Yes | 13300 | 3,66 |
- Spare Parts
| insert | socket-head | socket-head cap screw | coolant lock | coolant | coolant | |||
| D1 | screw | Nm | wrench | cap screw | with coolant groove | screw assembly | lock screw | cap |
| D1 | insert screw | Nm | wrench | socket-head cap screw | socket-head cap screw with coolantgroove | coolant lock screw assembly | coolant lock screw | coolant cap |
| 40,0 | 191.725 | 3,5 | 170.025 | MS1294 | MS1294CG | – | – | – |
| 50,0 | 191.725 | 3,5 | 170.025 | MS1234 | MS1294CG | – | – | – |
| 50,0 | 191.725 | 3,5 | 170.025 | MS1234 | MS1234CG | – | – | – |
| 63,0 | 191.725 | 3,5 | 170.025 | MS1234 | MS1234CG | – | – | – |
| 80,0 | 191.725 | 3,5 | 170.025 | MS2038 | MS2038CG | – | – | – |
| 100,0 | 191.725 | 3,5 | 170.025 | – | – | MS2195C | – | – |
| 125,0 | 191.725 | 3,5 | 170.025 | – | – | MS2187C | – | – |
| 160,0 | 191.725 | 3,5 | 170.025 | – | – | – | 12146107000 | 12146111100 |
