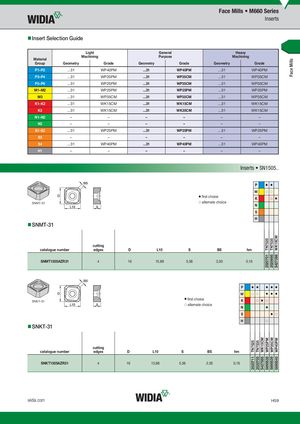

Общий каталог Widia 2017 - страница 779
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
- Insert Selection Guide
| Material | Li Mac | ght hining | Gen Pur | eral pose | He Mac | avy hining |
| Group | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | ...31 | WP40PM | ...31 | WP40PM | ...31 | WP40PM |
| P3–P4 | ...31 | WP25PM | ...31 | WP35CM | ...31 | WP35CM |
| P5–P6 | ...31 | WP25PM | ...31 | WP35CM | ...31 | WP35CM |
| M1–M2 | ...31 | WP25PM | ...31 | WP25PM | ...31 | WP25PM |
| M3 | ...31 | WP35CM | ...31 | WP35CM | ...31 | WP35CM |
| K1–K2 | ...31 | WK15CM | ...31 | WK15CM | ...31 | WK15CM |
| K3 | ...31 | WK15CM | ...31 | WK35CM | ...31 | WK15CM |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | ...31 | WP25PM | ...31 | WP25PM | ...31 | WP25PM |
| S3 | – | – | – | – | – | – |
| S4 | ...31 | WP40PM | ...31 | WP40PM | ...31 | WP40PM |
| H1 | – | – | – | – | – | – |
Inserts • SN1505..
SNMT-31
- SNMT-31
fi rst choice alternate choice
P M K N S H
cutting
| catalogue number | edges | D | L10 | S | BS | hm |
| SNMT1505AZR31 | 4 | 16 | 15,88 | 5,56 | 2,00 | 0,16 |
fi rst choice SNKT-31 alternate choice
- SNKT-31
P M K N S H
cutting
| catalogue number | edges | D | L10 | S | BS | hm |
| SNKT1505AZR31 | 4 | 16 | 15,88 | 5,56 | 2,00 | 0,16 |
