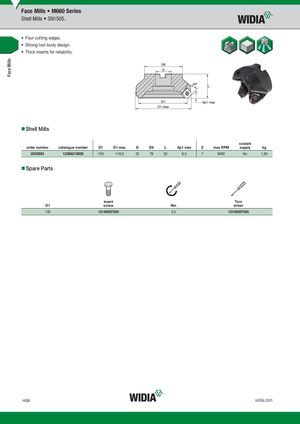

Shell Mills SN1505..
- Four cutting edges.
- Strong tool body design.
- Thick inserts for reliability.
- Shell Mills
coolant
| order number | catalogue number | D1 | D1 max | D | D6 | L | Ap1 max | Z | max RPM | supply | kg | |||
| 2003593 | 12396215000 | 100 | 116,9 | 32 | 78 | 50 | 8,0 | 7 | 8900 | No | 1,60 |
- Spare Parts
insert Torx
| D1 | screw | Nm | driver | ||
| 100 | 12148007200 | 3,5 | 12148007500 |
