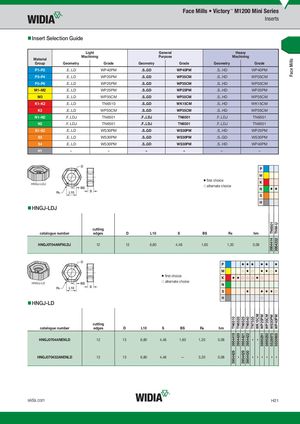

- Insert Selection Guide
| Material | Li Mac | ght hining | Gen Pur | eral pose | Heavy Machining |
| Group | Geometry | Grade | Geometry | Grade | Geometry Grade |
| P1–P2 | .E..LD | WP40PM | .S..GD | WP40PM | .S..HD WP40PM |
| P3–P4 | .E..LD | WP25PM | .S..GD | WP35CM | .S..HD WP35CM |
| P5–P6 | .E..LD | WP25PM | .S..GD | WP35CM | .S..HD WP35CM |
| M1–M2 | .E..LD | WP25PM | .S..GD | WP25PM | .S..HD WP25PM |
| M3 | .E..LD | WP35CM | .S..GD | WP35CM | .S..HD WP35CM |
| K1–K2 | .E..LD | TN6510 | .S..GD | WK15CM | .S..HD WK15CM |
| K3 | .E..LD | WP35CM | .S..GD | WP35CM | .S..HD WP35CM |
| N1–N2 | .F..LDJ | TN6501 | .F..LDJ | TN6501 | .F..LDJ TN6501 |
| N3 | .F..LDJ | TN6501 | .F..LDJ | TN6501 | .F..LDJ TN6501 |
| S1–S2 | .E..LD | WS30PM | .S..GD | WS30PM | .S..HD WP25PM |
| S3 | .E..LD | WS30PM | .S..GD | WS30PM | .S..GD WS30PM |
| S4 | .E..LD | WS30PM | .S..GD | WS30PM | .S..HD WP40PM |
| H1 | – | – | – | – | – – |
HNGJ-LDJ
- HNGJ-LDJ
first choice alternate choice
P M K N S H
cutting
| catalogue number | edges | D | L10 | S | BS | R¡ | hm |
| HNGJ0704ANFNLDJ | 12 | 13 | 6,80 | 4,48 | 1,60 | 1,20 | 0,08 |
first choice alternate choice HNGJ-LD
- HNGJ-LD
P M K N S H
cutting
| catalogue number | edges | D | L10 | S | BS | R¡ | hm |
| HNGJ0704ANENLD | 12 | 13 | 6,80 | 4,48 | 1,60 | 1,20 | 0,08 |
HNGJ070432ANENLD 12 13 6,80 4,48 — 3,20 0,08
