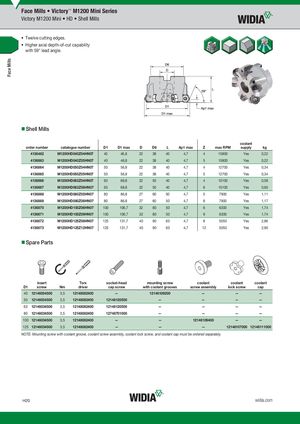

Victory M1200 Mini HD Shell Mills
- Twelve cutting edges.
- Higher axial depth-of-cut capability with 59° lead angle.
- Shell Mills
| order number | catalogue number | D1 | D1 max | D | D6 | L | Ap1 max | Z | max RPM | coolant supply | kg |
| 4136482 | M1200HD040Z04HN07 | 40 | 46,8 | 22 | 38 | 40 | 4,7 | 4 | 15800 | Yes | 0,22 |
| 4136863 | M1200HD040Z05HN07 | 40 | 46,8 | 22 | 38 | 40 | 4,7 | 5 | 15800 | Yes | 0,22 |
| 4136864 | M1200HD050Z04HN07 | 50 | 56,8 | 22 | 38 | 40 | 4,7 | 4 | 12700 | Yes | 0,34 |
| 4136865 | M1200HD050Z05HN07 | 50 | 56,8 | 22 | 38 | 40 | 4,7 | 5 | 12700 | Yes | 0,34 |
| 4136866 | M1200HD063Z04HN07 | 63 | 69,8 | 22 | 50 | 40 | 4,7 | 4 | 10100 | Yes | 0,58 |
| 4136867 | M1200HD063Z06HN07 | 63 | 69,8 | 22 | 50 | 40 | 4,7 | 6 | 10100 | Yes | 0,60 |
| 4136868 | M1200HD080Z05HN07 | 80 | 86,8 | 27 | 60 | 50 | 4,7 | 5 | 7900 | Yes | 1,11 |
| 4136869 | M1200HD080Z08HN07 | 80 | 86,8 | 27 | 60 | 50 | 4,7 | 8 | 7900 | Yes | 1,17 |
| 4136870 | M1200HD100Z06HN07 | 100 | 106,7 | 32 | 80 | 50 | 4,7 | 6 | 6300 | Yes | 1,74 |
| 4136871 | M1200HD100Z09HN07 | 100 | 106,7 | 32 | 80 | 50 | 4,7 | 9 | 6300 | Yes | 1,74 |
| 4136872 | M1200HD125Z08HN07 | 125 | 131,7 | 40 | 90 | 63 | 4,7 | 8 | 5050 | Yes | 2,86 |
| 4136873 | M1200HD125Z12HN07 | 125 | 131,7 | 40 | 90 | 63 | 4,7 | 12 | 5050 | Yes | 2,90 |
- Spare Parts
| insert | Torx | socket-head | mounting screw | coolant | coolant | coolant | |||
| D1 | screw | Nm | driver | cap screw | with coolant grooves | screw assembly | lock screw | cap |
| 40 | 12146034500 | 3,5 | 12148082400 | — | 12146109200 | — | — | — | |
| 50 | 12146034500 | 3,5 | 12148082400 | 12146120500 | — | — | — | — | |
| 63 | 12146034500 | 3,5 | 12148082400 | 12146120500 | — | — | — | — | |
| 80 | 12146034500 | 3,5 | 12148082400 | 12748701000 | — | — | — | — | |
| 100 | 12146034500 | 3,5 | 12148082400 | — | — | 12146109400 | — | — | |
| 125 | 12146034500 | 3,5 | 12148082400 | — | — | — | 12146107000 12146111000 |
NOTE: Mounting screw with coolant groove, coolant screw assembly, coolant lock screw, and coolant cap must be ordered separately.
