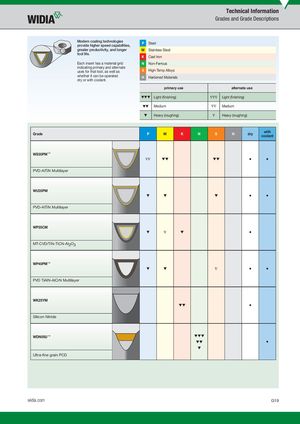

Modern coating technologies provide higher speed capabilities, greater productivity, and longer tool life. Each insert has a material grid indicating primary and alternate uses for that tool, as well as whether it can be operated dry or with coolant.
P Steel M Stainless Steel K Cast Iron N Non-Ferrous S High-Temp Alloys H Hardened Materials
primary use alternate use
| WWW | Light (fi nishing) | ¢¢¢ | Light (fi nishing) |
| WW | Medium | ¢¢ | Medium |
| W | Heavy (roughing) | ¢ | Heavy (roughing) |
with
Grade P M K N S H dry
coolant
WS30PM™
¢¢ WW WW • •
PVD-AlTiN Multilayer
WU35PM
W W W • •
PVD-AlTiN Multilayer
WP35CM
W ¢ W •
MT-CVD/TiN-TiCN-Al2O3
WP40PM™
W W ¢ • •
PVD TiAlN-AlCrN Multilayer
WK25YM WW •
Silicon Nitride
WDN00U™ WWW WW • W Ultra-fi ne grain PCD
