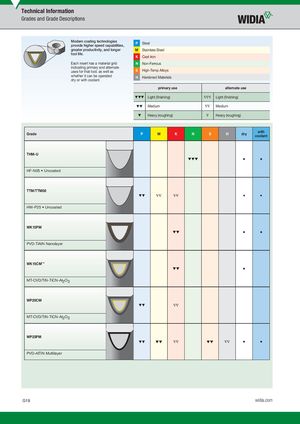

Modern coating technologies provide higher speed capabilities, greater productivity, and longer tool life. Each insert has a material grid indicating primary and alternate uses for that tool, as well as whether it can be operated dry or with coolant.
P Steel M Stainless Steel K Cast Iron N Non-Ferrous S High-Temp Alloys H Hardened Materials
primary use alternate use
| WWW | Light (fi nishing) | ¢¢¢ | Light (fi nishing) |
| WW | Medium | ¢¢ | Medium |
| W | Heavy (roughing) | ¢ | Heavy (roughing) |
with
Grade P M K N S H dry
coolant
THM-U
WWW • •
HF-N05 • Uncoated
TTM/TTM08
WW ¢¢ ¢¢ • •
HW-P25 • Uncoated
WK15PM
WW • •
PVD-TiAlN Nanolayer
WK15CM™ WW • MT-CVD/TiN-TiCN-Al2O3
WP20CM WW ¢¢ MT-CVD/TiN-TiCN-Al2O3
WP25PM
WW WW ¢¢ WW ¢¢ • •
PVD-AlTiN Multilayer
